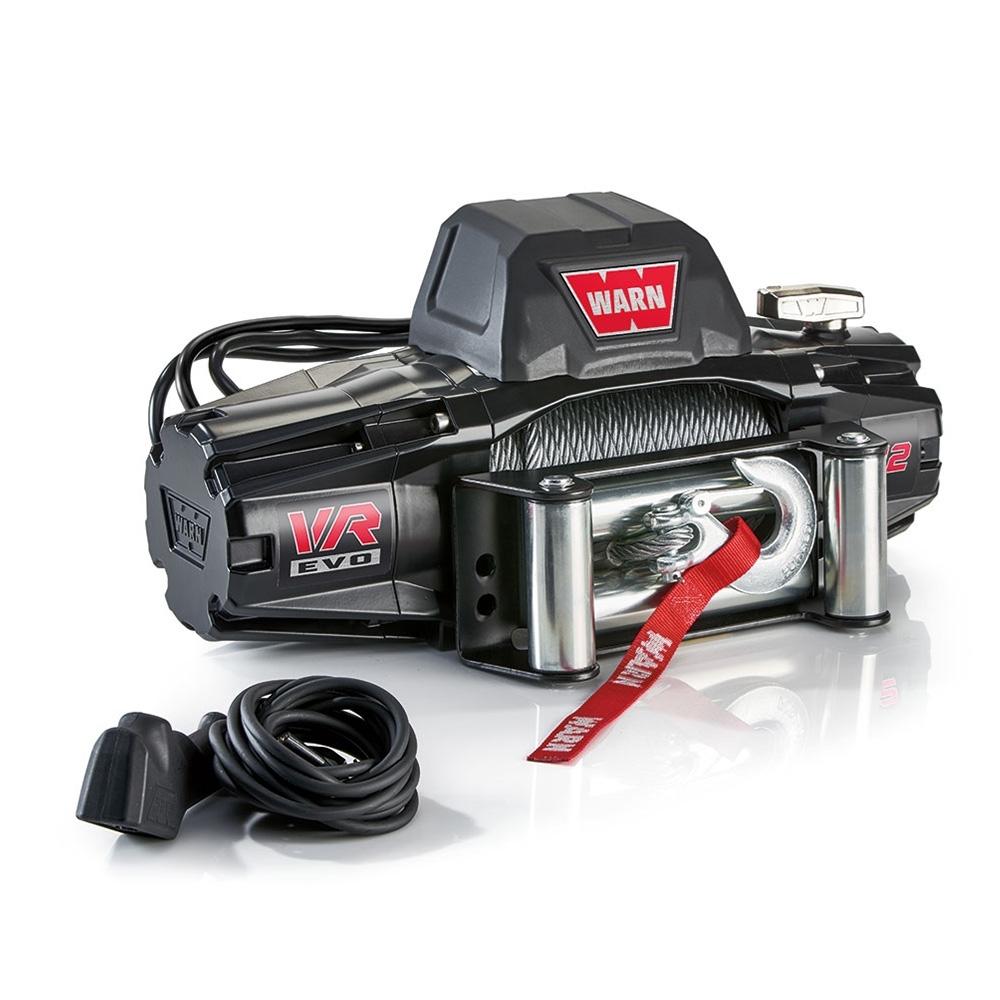

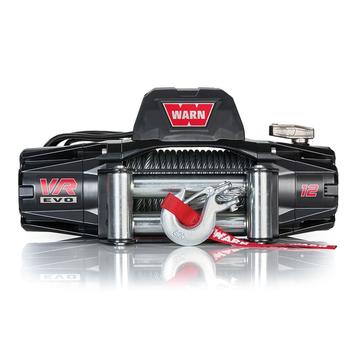

Warn EVO 12

Ideal for 1-ton pickups and all types of large frame rigs that require longer and heavier pulls. The EVO 12 and 12-S feature IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it’s fast line-speed and lower amp draw, the EVO series of winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.

  • A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw

  • IP68-rated waterproof winch construction keeps the elements out

  • High-performance Albright contactor delivers maximum reliability

  • Control packs can be relocated for low-profile installations

  • Durable, one-piece cast-aluminum tie-plate for added strength and durability

  • Two-in-one remote with wired AND wireless options for ease of use and versatility

  • Limited lifetime warranty for mechanical parts and 7 years on the electrical

  • Designed, engineered, and tested by WARN engineers in the U.S.A.

Part number: EVO-12-103254
Rated line pull: 5443kg (12000 lbs.)
Motor: 12V series wound
Electrical controls: Albright Contactor
Remote Control: 2 in 1 plug-in remote with wireless capability and 3.5M lead
Geartrain: 3-Stage Planetary
Gear ratio: 234:1
Clutch (freespooling): Rotating ring gear
Brake: Spring brake
Drum diameter/Length: 6.73cm/23cm (2.5″/ 9.0″)
Shipping weight:  41.19 kg (90.81 lbs.)
Net product weight: 33.39 kg (73.61 lbs.)
Rope: 9.5mm x 25.9m (3/8″ x 85′)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 25m x 2M
Finish: Powder coating over primer undercoating
