883-06-162
Vehicle Suitability

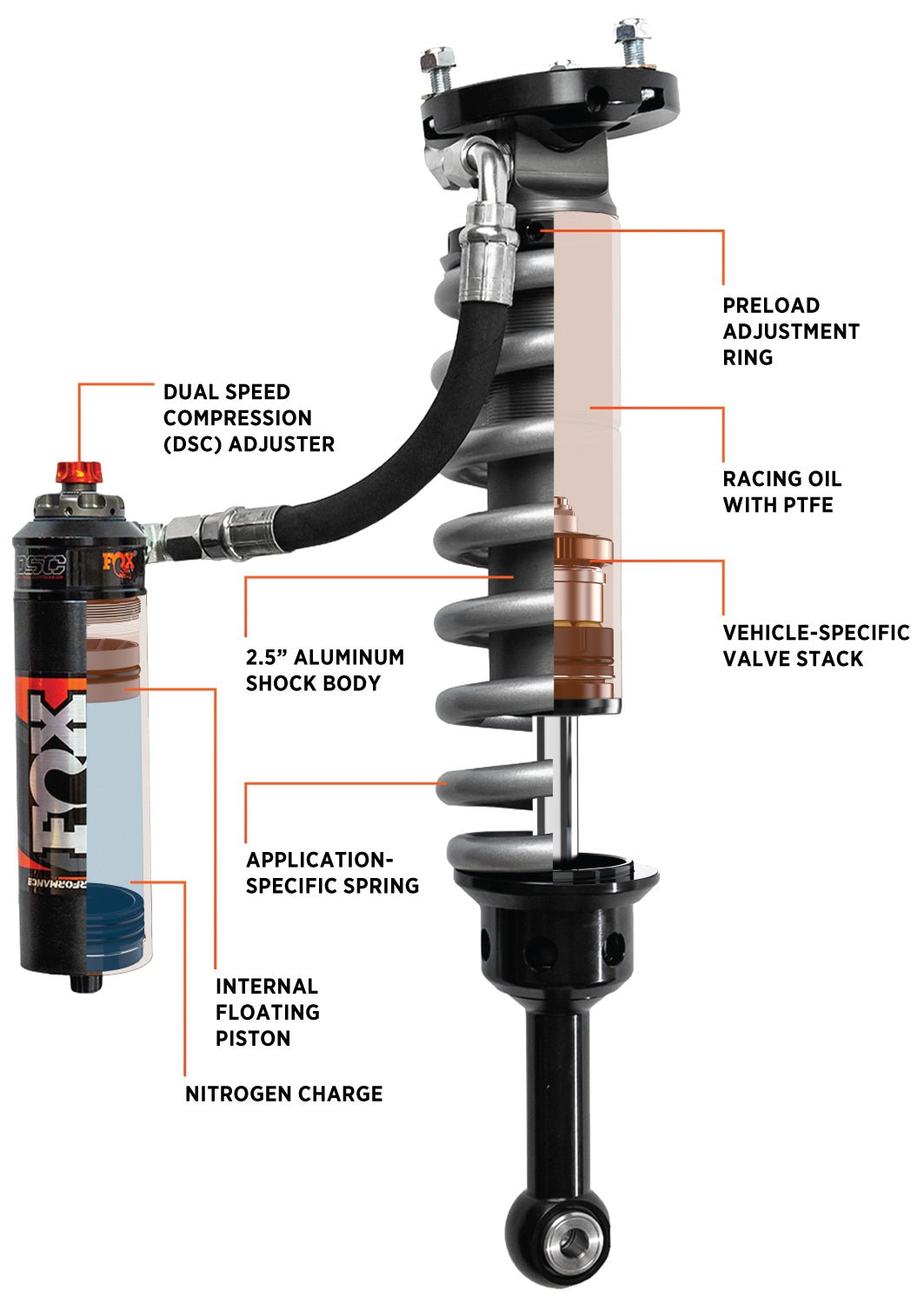

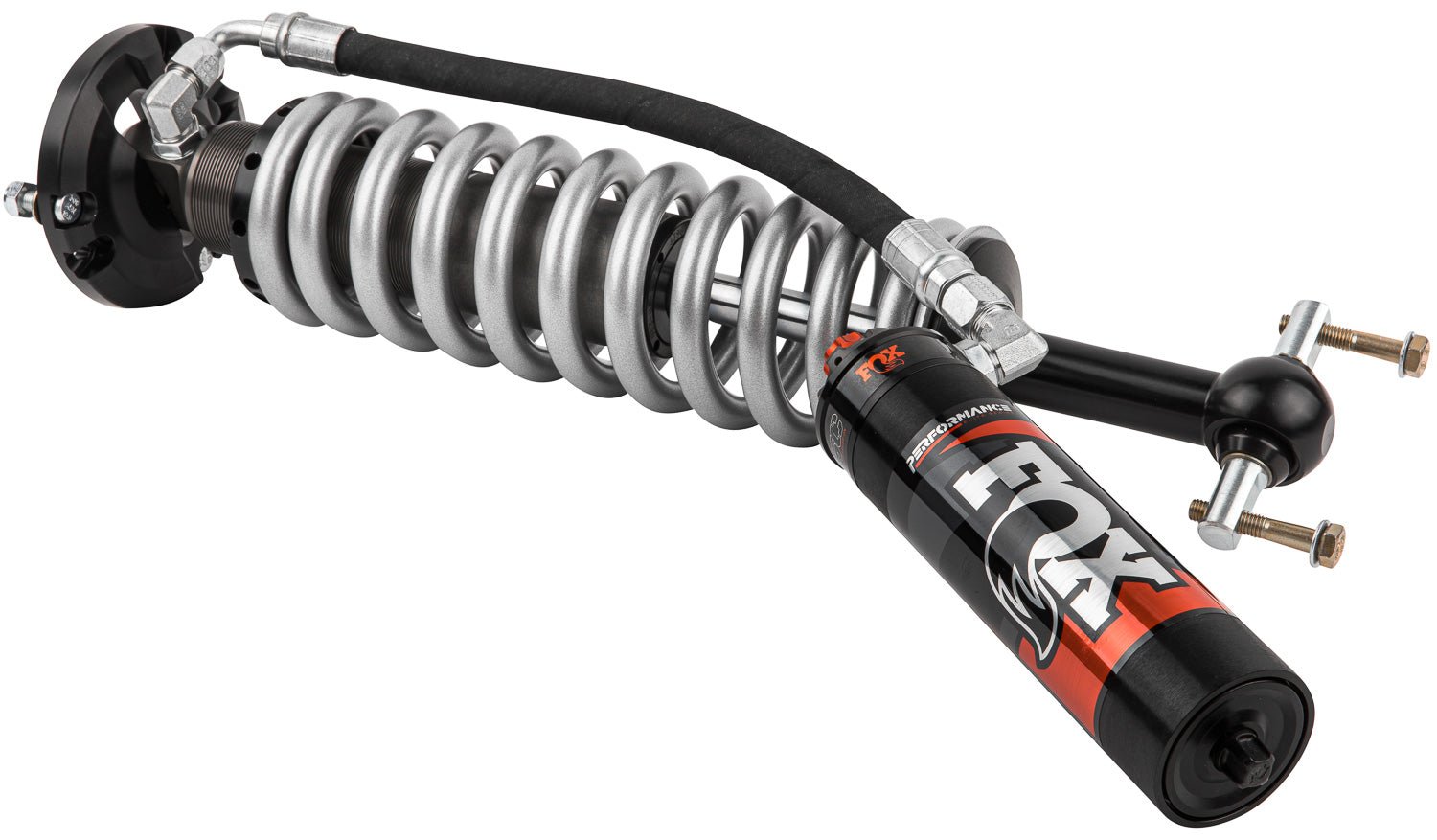

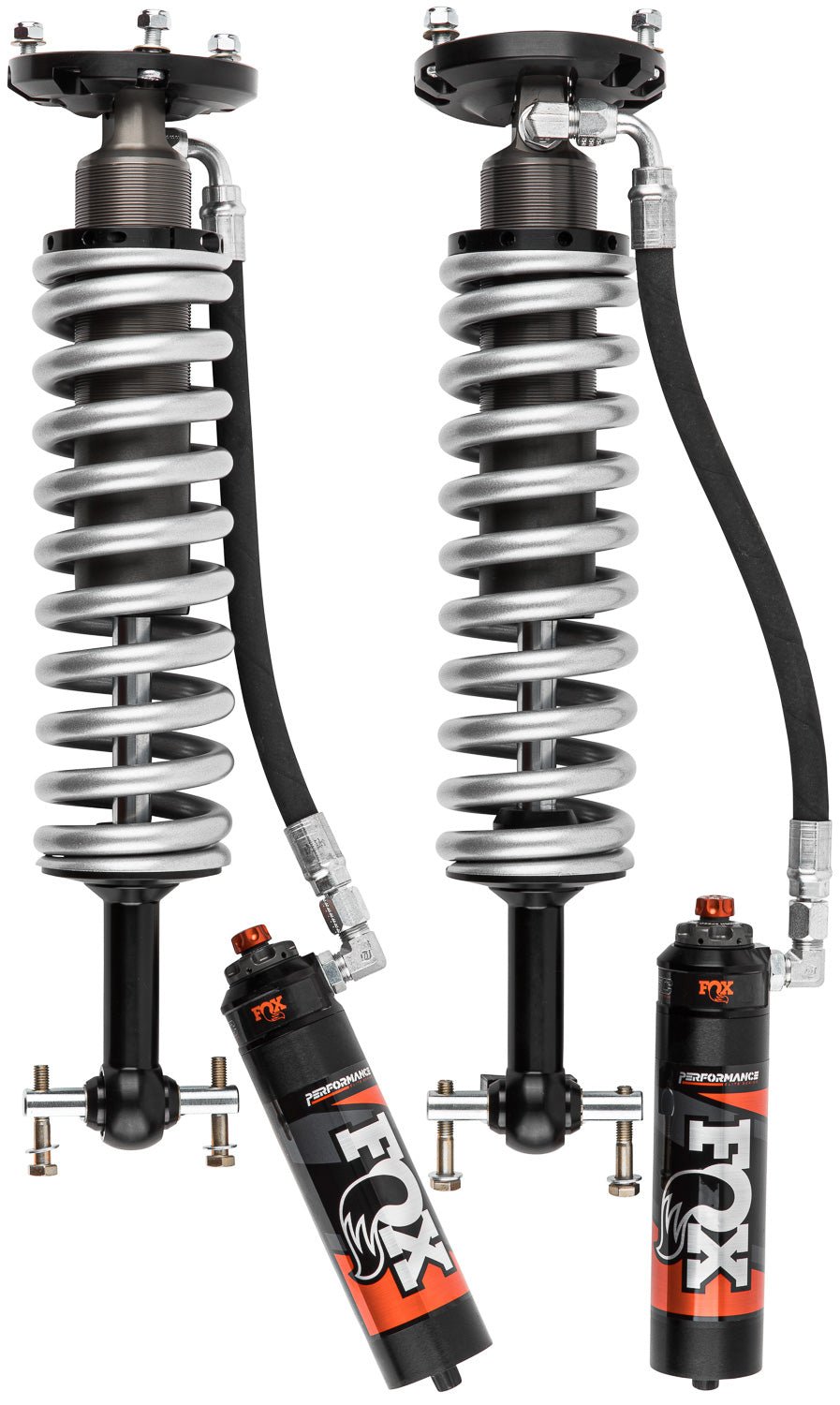

Our shocks undergo rigorous testing and must withstand the intense demands of top racers before going into production. We strive to exceed your expectations and deliver race-proven precision and performance. Experience enhanced vibration control in every terrain with our Performance Elite Series Coil-over Reservoir shocks.
Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Experience for yourself the incredible performance and precise control that Performance Elite Series Coil-over Reservoir shocks deliver.
SKU: 883-06-162
| Body | 2.5" Impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time |
|---|---|
| Body Plating | Hard-anodized for a durable finish |
| Reservoir | 2.5" Smooth bore and honed seamless alloy reservoir |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Spring | Application specific, adjustable 3.0 Eibach® racing springs |
| Shaft | 7/8" hard chrome plated steel shafts |
| Piston | 6061-T6 hard-anodized, high flow aluminum piston |
| Valving | Application specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Bearing | PTFE-lined, heat-treated, alloy steel spherical |
| Adjustments | Ride height preload ring |
| Extended | 22.810 |
| Compressed | 16.940 |
| Travel | 5.870 |

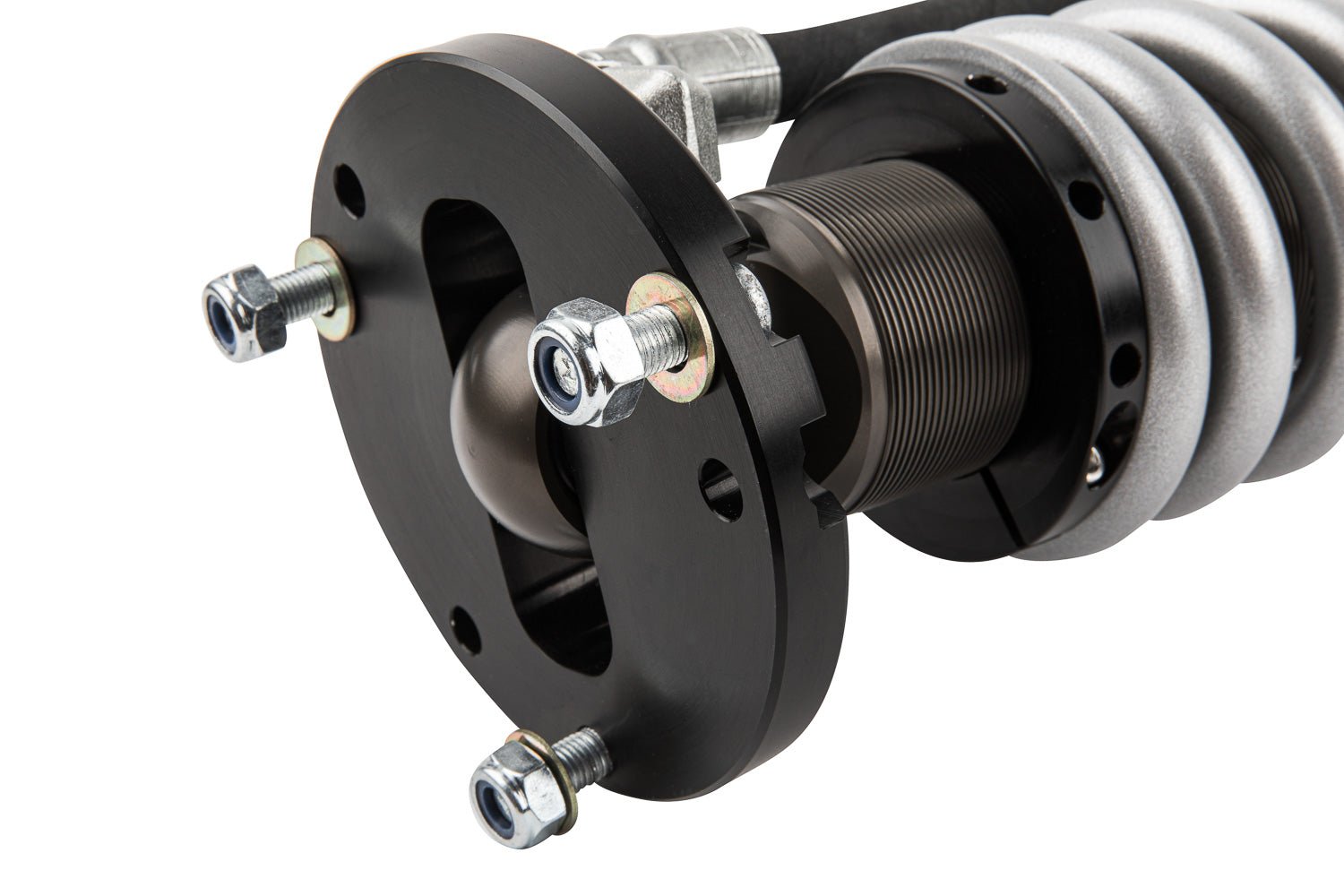

| Top Mount | OEM |

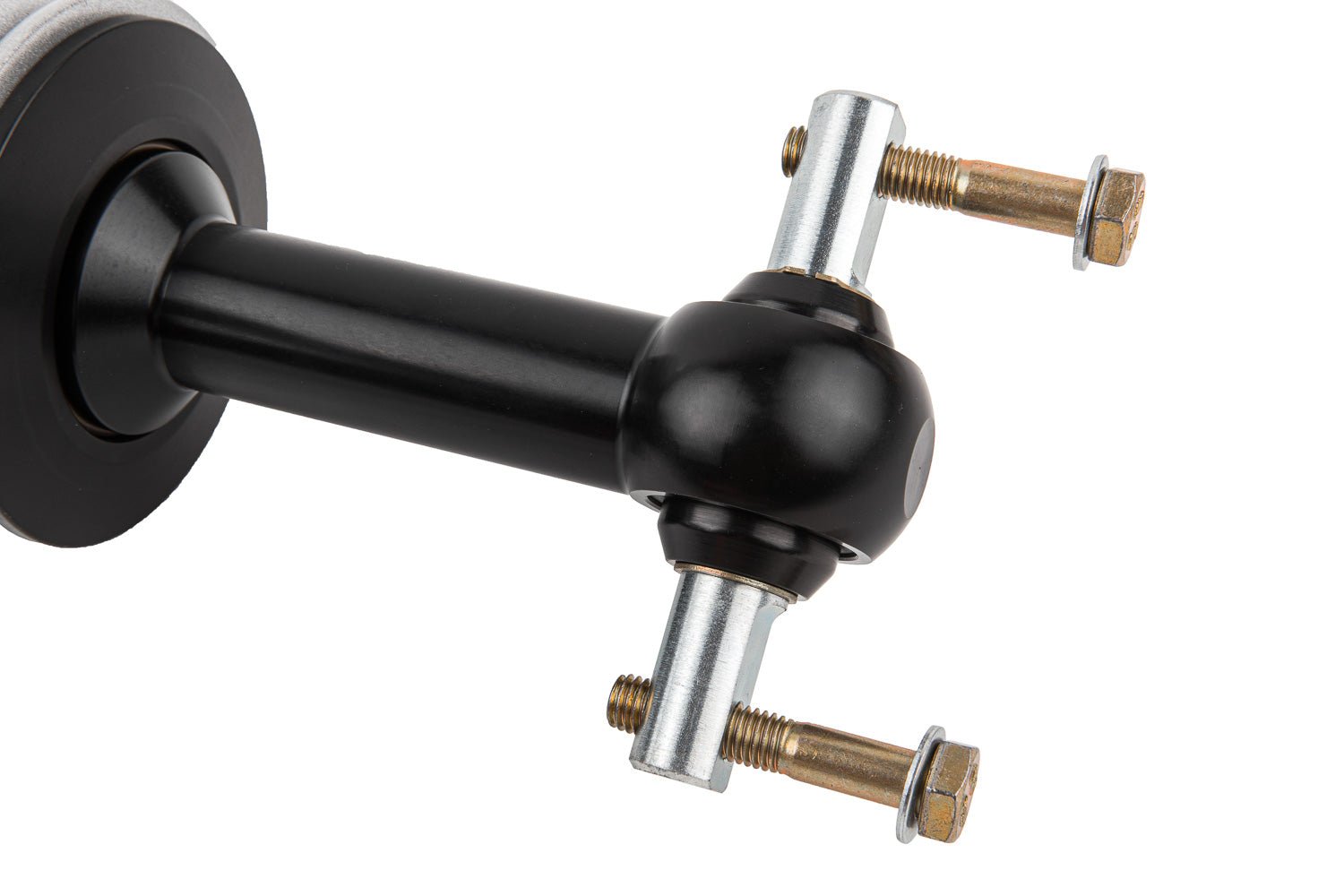

| Bottom Mount | Bar Pin |
| Fitment notes | Requires Upper Control Arm | Includes Universal Bracket | Excludes AT4X Models | AT4 Model Fits 1.5" Lift Only |
