987-24-030

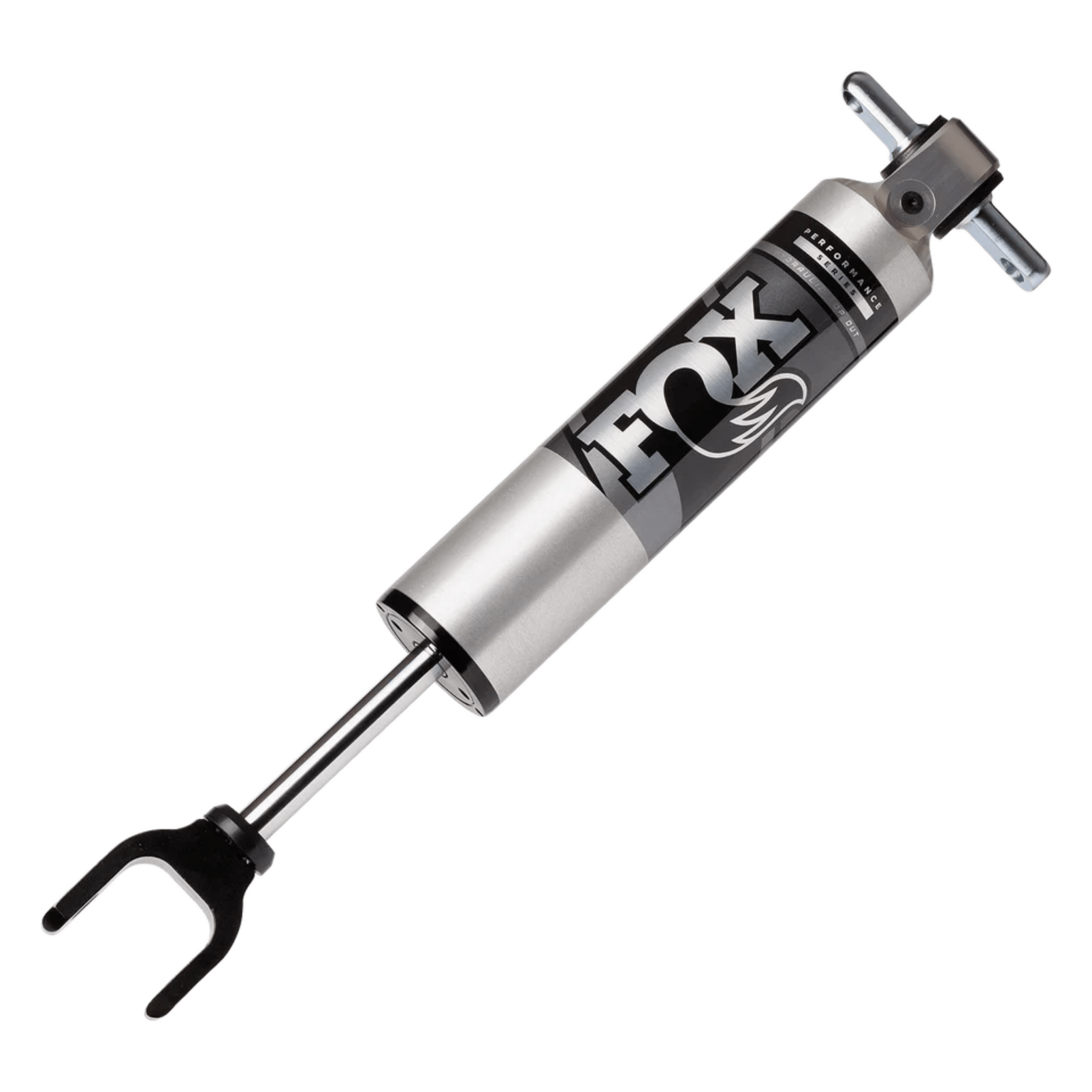

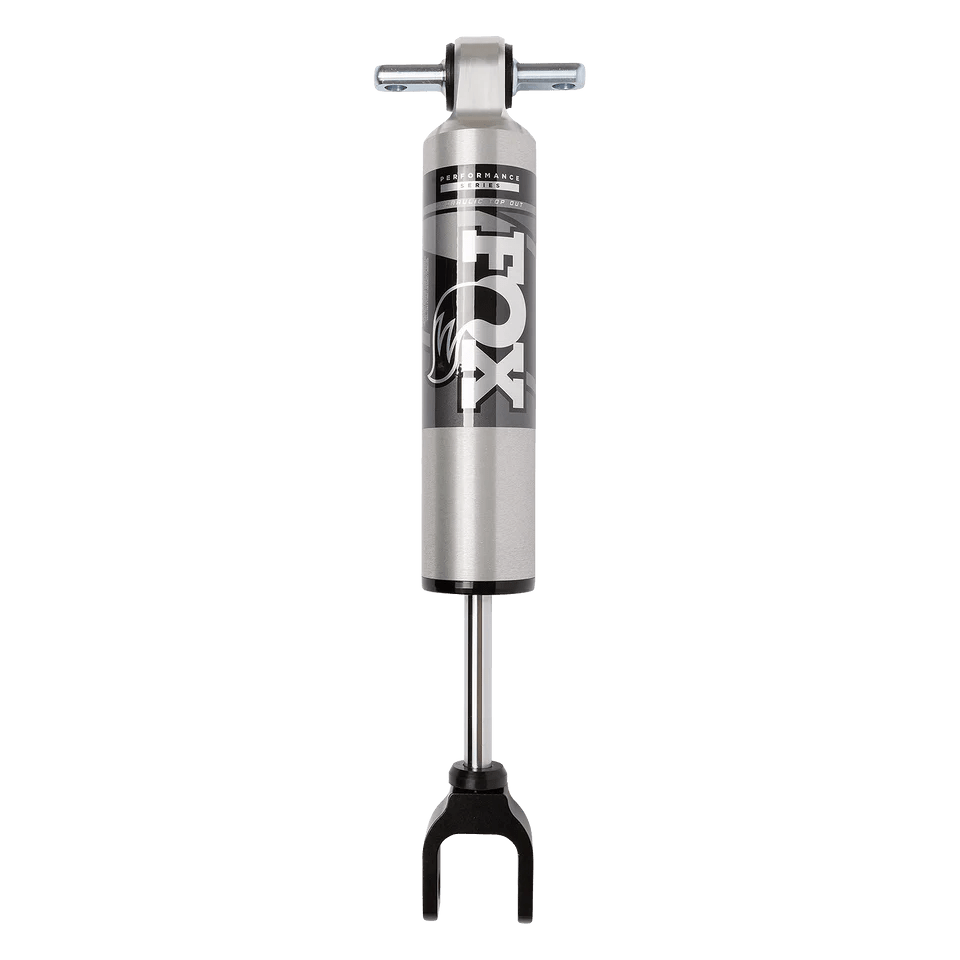

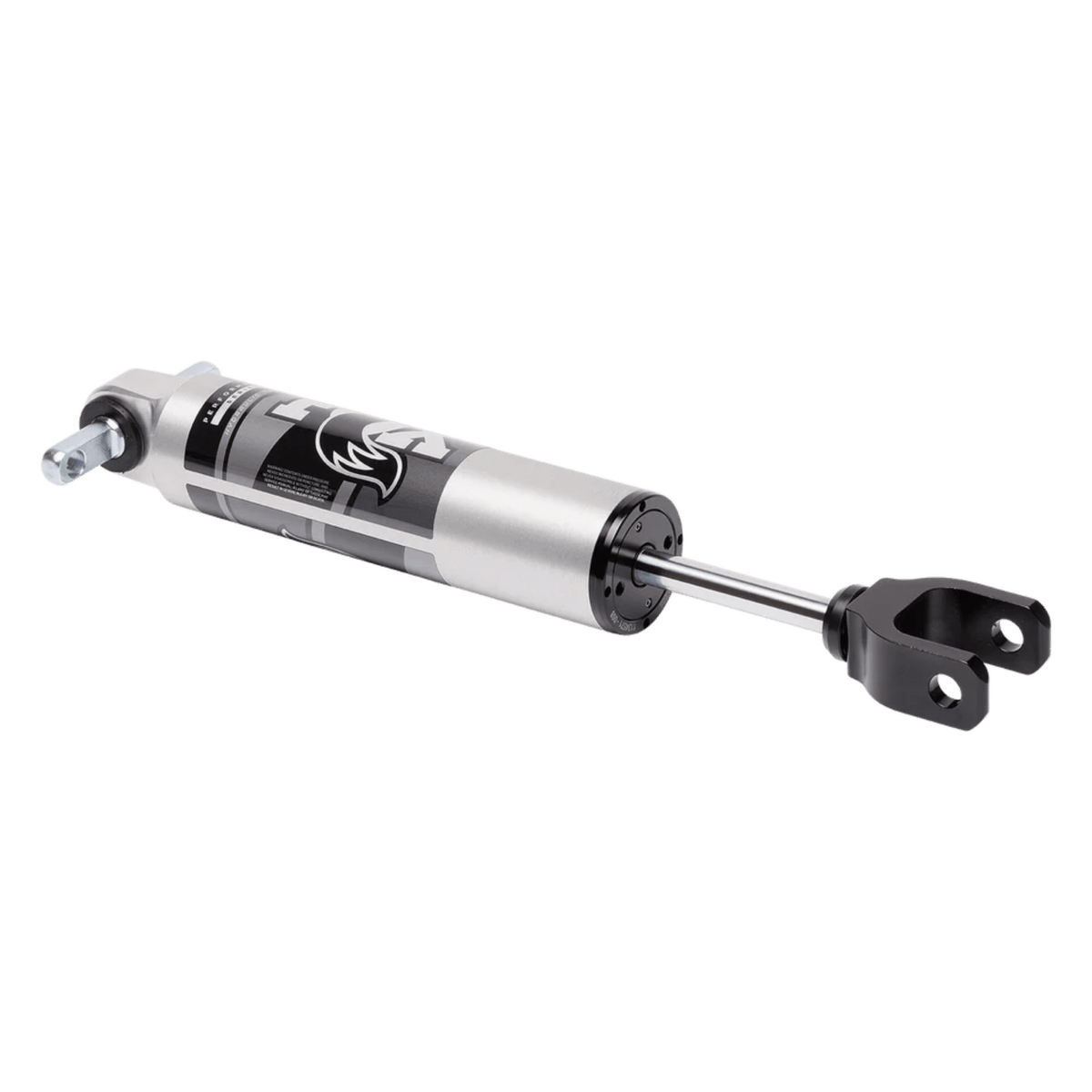

FOX PERFORMANCE SERIES 2.5 HTO SHOCK Chevrolet Silverado 2500HD 11- 19 0-1" FRONT

FOX PERFORMANCE SERIES 2.5 HTO SHOCK Chevrolet Silverado 2500HD 11- 19 0-1" FRONT

Enhance your Chevrolet Silverado 2500HD's performance on and off the road with the FOX 2.5 Performance Series HTO shock, equipped with advanced position-sensitive technology and custom vehicle-specific valving. Its larger pistons provide optimal damping while the anodized aluminum body effectively dissipates heat and prevents corrosion. With a 2.5-inch shock body and internal floating piston (IFP), this shock is a game-changer for any adventure seeker!

Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.

Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.



PART NUMBER 987-24-030
FEATURES 2.5” Impact extruded 6061-T6 aluminum shock body
Type II clear-anodized body plating
High-flow velocity-sensitive damping
5/8” hard chrome shaft
Internal floating piston (IFP)
Hydraulic Top Out (HTO) piston
TRAVEL 4.89
FRONT LIFT HEIGHT 0-1
EXTENDED LENGTH 17.95
COMPRESSED LENGTH 13.07
TOP MOUNT Bar Pin
BOTTOM MOUNT Clevis
FITMENT NOTES Lift: 0-1 inch
