Sold out

883-26-166

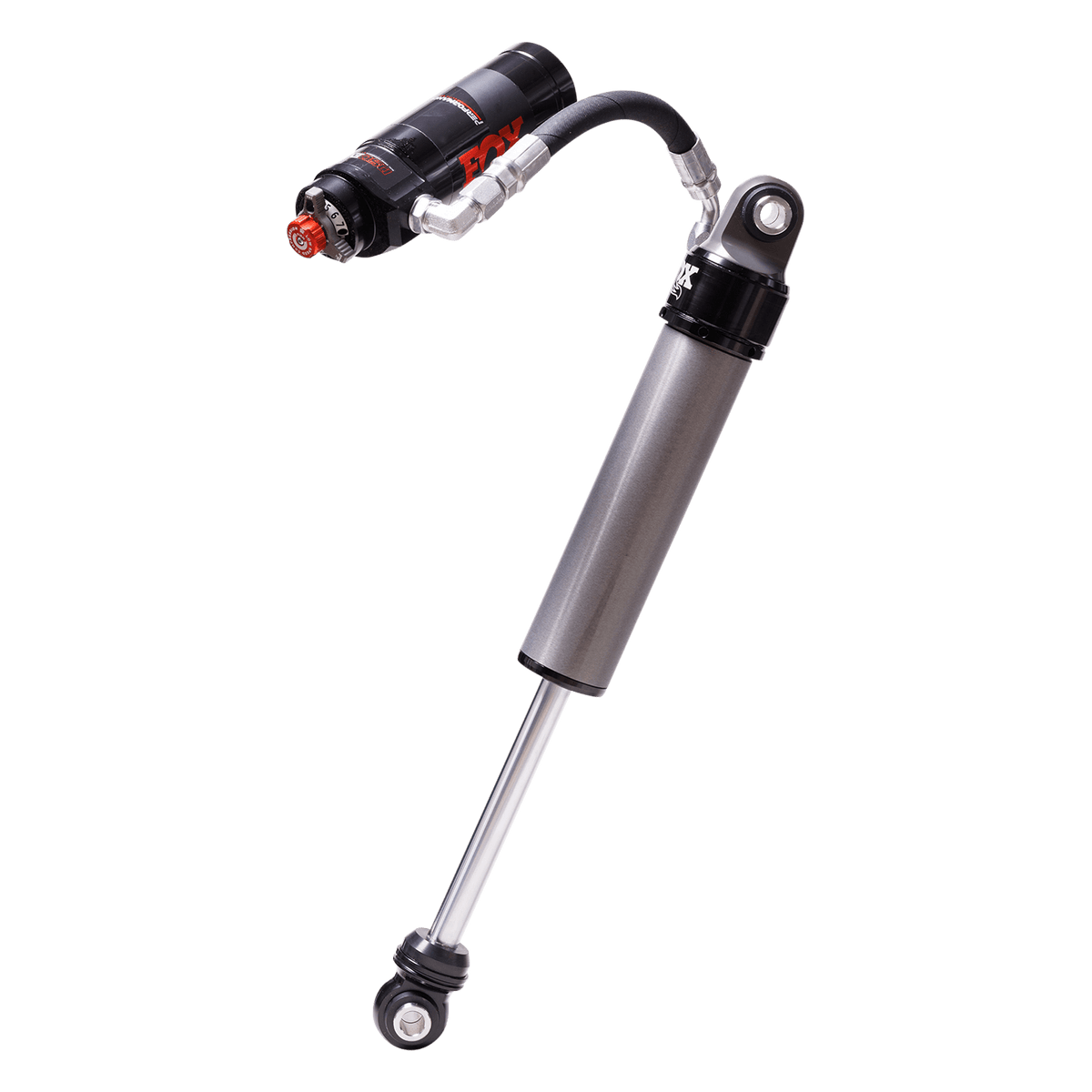

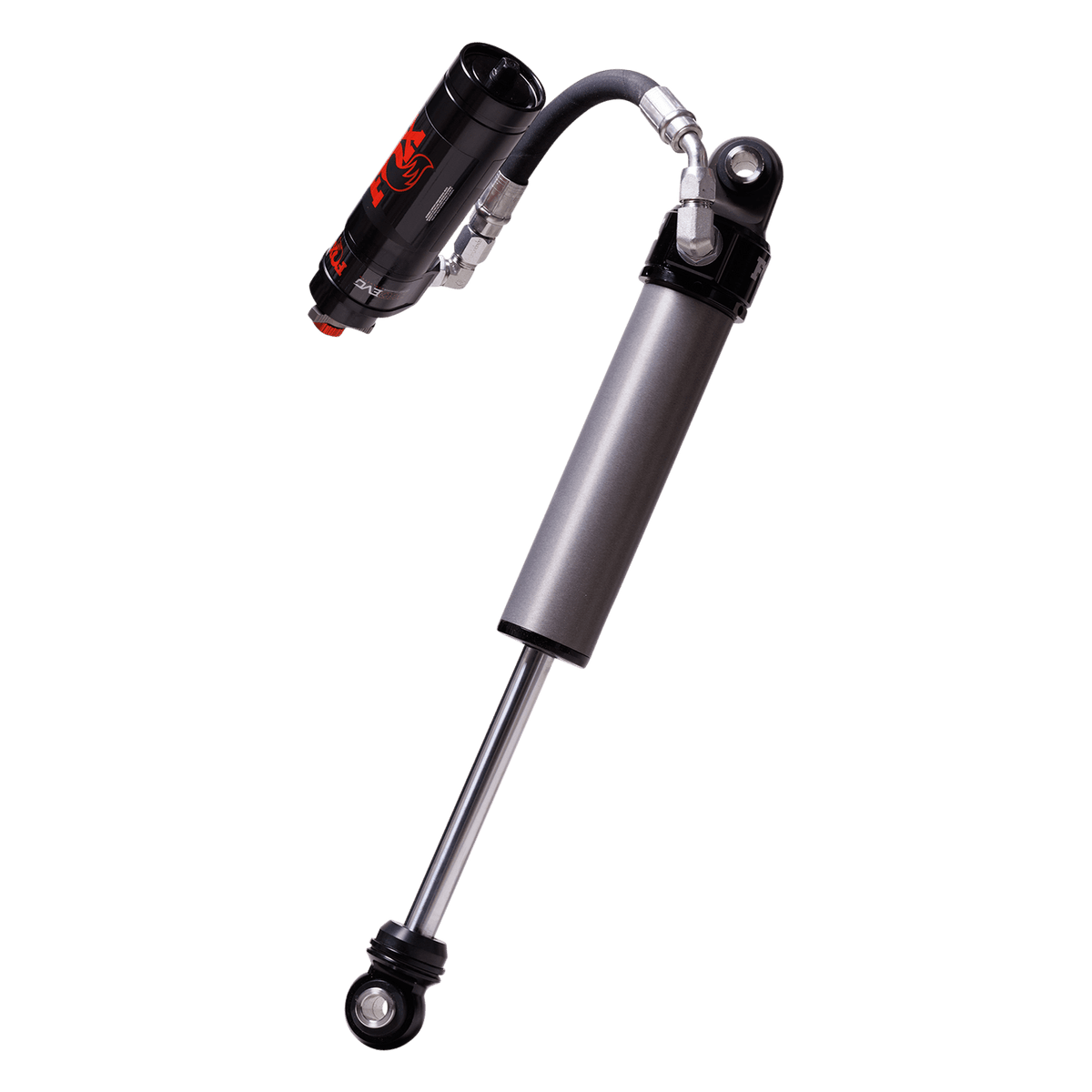

FOX INEOS GRENADIER PERFORMANCE ELITE SERIES 2.5 RESERVOIR FRONT SHOCK - ADJUSTABLE

FOX INEOS GRENADIER PERFORMANCE ELITE SERIES 2.5 RESERVOIR FRONT SHOCK - ADJUSTABLE

FOX Performance Elite Series 2.5 shocks featuring DSC EVO are a bolt-on solution tuned for the INEOS Grenadier. Optimise vehicle performance without compromising OEM reliability and vehicle performance.

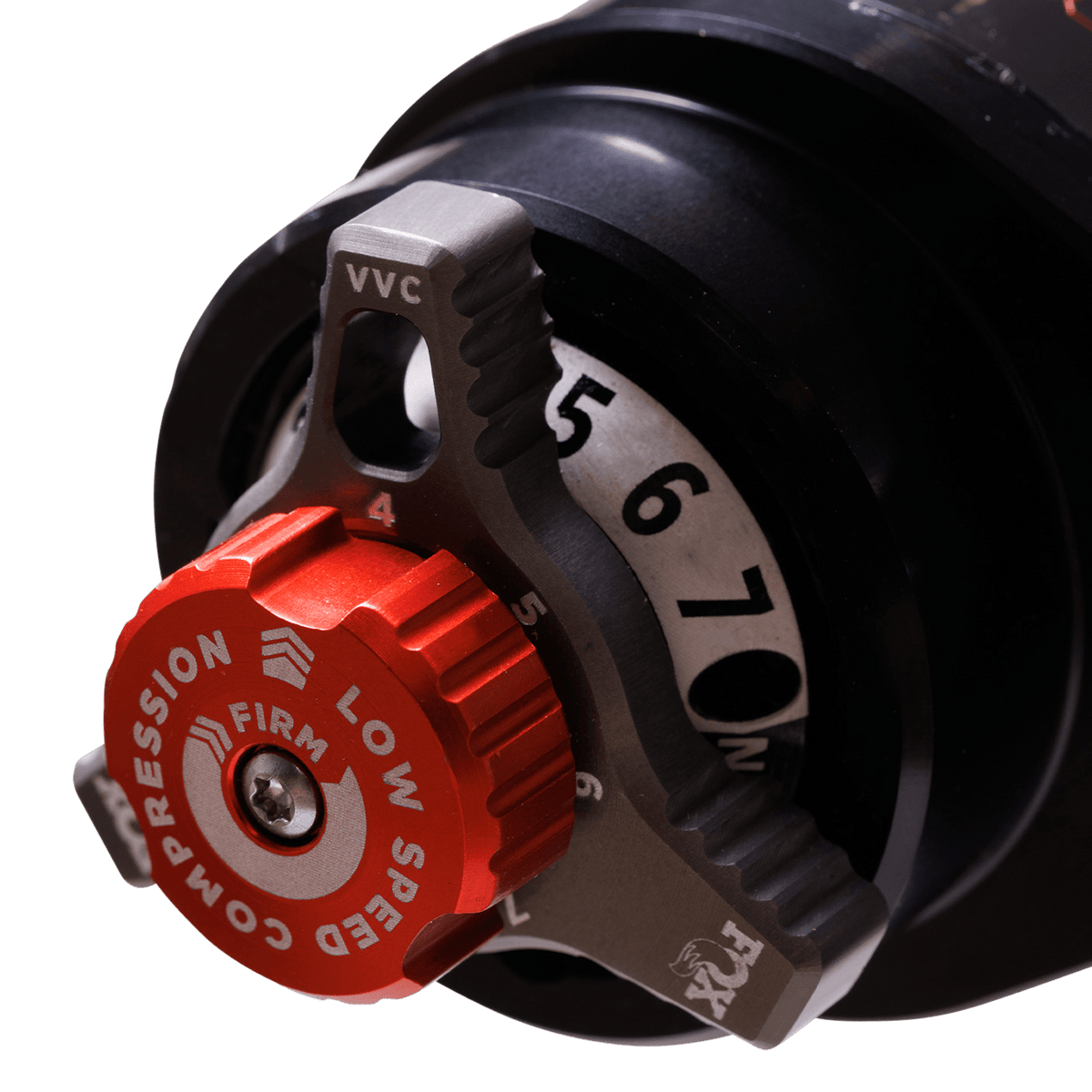

Type III anodisation prevents corrosion and wear of the 2.5-inch aluminium bodies. External reservoirs increase oil capacity, allow additional shock stroke to maintain available travel, and decrease the harshness associated with nitrogen ramp-up. Each reservoir features a Dual Speed Compression Evolution (DSC EVO) adjuster strategically mounted to eliminate interference with aggressive tires at full lock.

DSC EVO features Variable Valve Control (VVC) on the high-speed circuit. VVC doesn't add preload to the shim stack to adjust high-speed damping. The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of high speed compression without sacrificing small-bump sensitivity.

Performance Elite shocks with DSC EVO provide versatility without compromise to navigate rough terrain and improve on-road manners while remaining comfortable and in control.

PART NUMBER 883-26-166
FEATURES

2.5" impact-extruded and CNC-machined 6061-T6 Type III anodised aluminium body

7/8" hard chromed steel shafts

Vehicle-specific tuning maximises performance

Redundant sealing pack system: main seal, wiper seal, scraper seal

External reservoir, with DSC EVO adjuster

SERIES Performance Elite
TRAVEL 8.38
BODY 2.5" impact extruded and CNC machined 6061-T6 hard anodised aluminium body resists rust over time
BODY PLATING Hard-anodised for a durable finish
COMPONENTS Black-anodised, CNC-machined 6061-T6 billet aluminium
SHAFT 7/8" hard chrome plated heat-treated alloy steel
PISTON Race-developed high-flow piston design
VALVING Application specific valving to maximise performance
SEALS Redundant sealing pack system main seal, wiper seal, scraper seal
BEARINGS PTFE-lined, heat-treated, alloy steel spherical
EXTENDED LENGTH 23.22
COMPRESSED LENGTH 14.84
TOP MOUNT Eyelet
BOTTOM MOUNT Eyelet

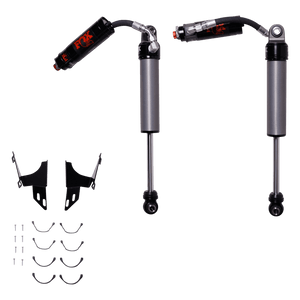

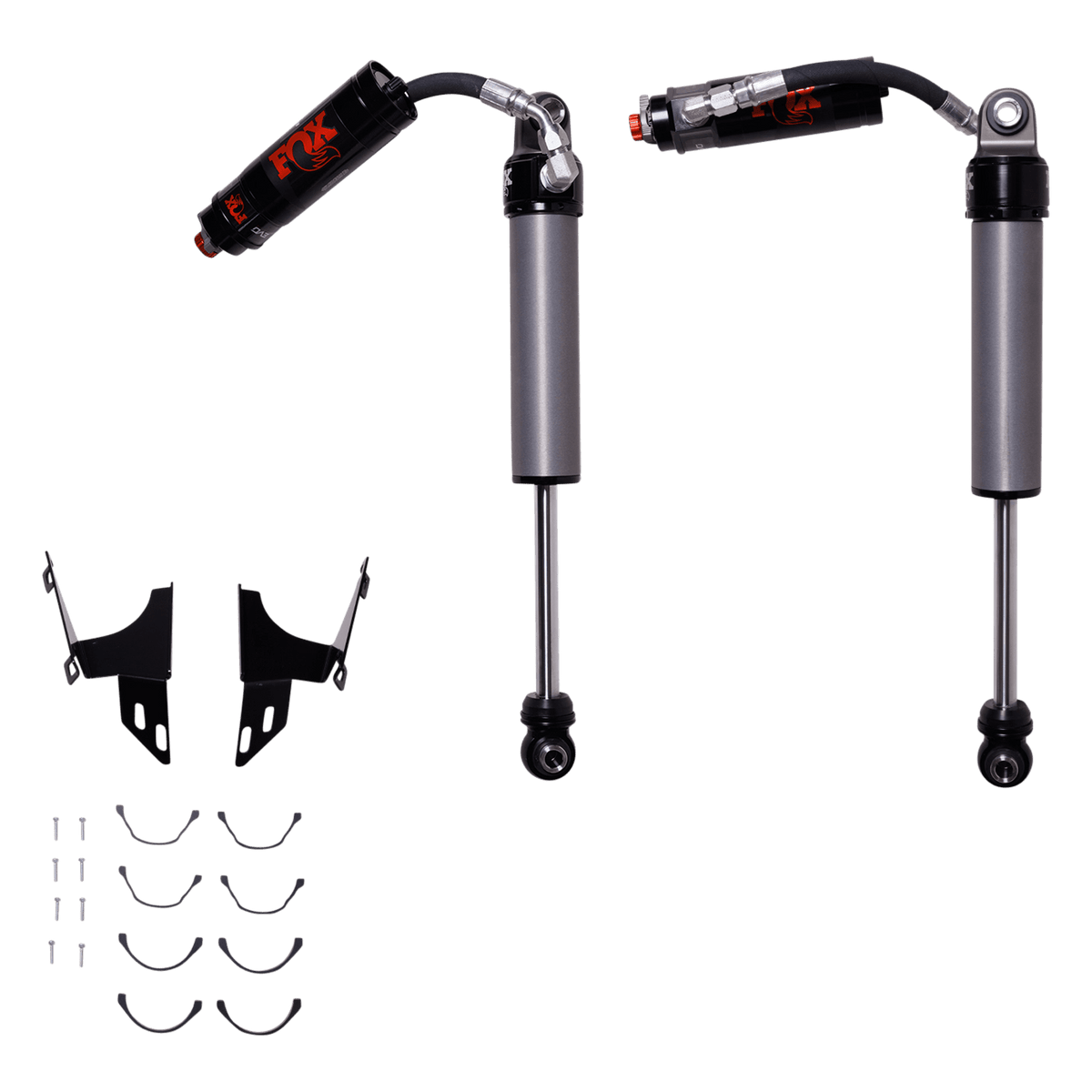

FITMENT NOTES Includes Reservoir Mounting Bracket
