EVO10-S

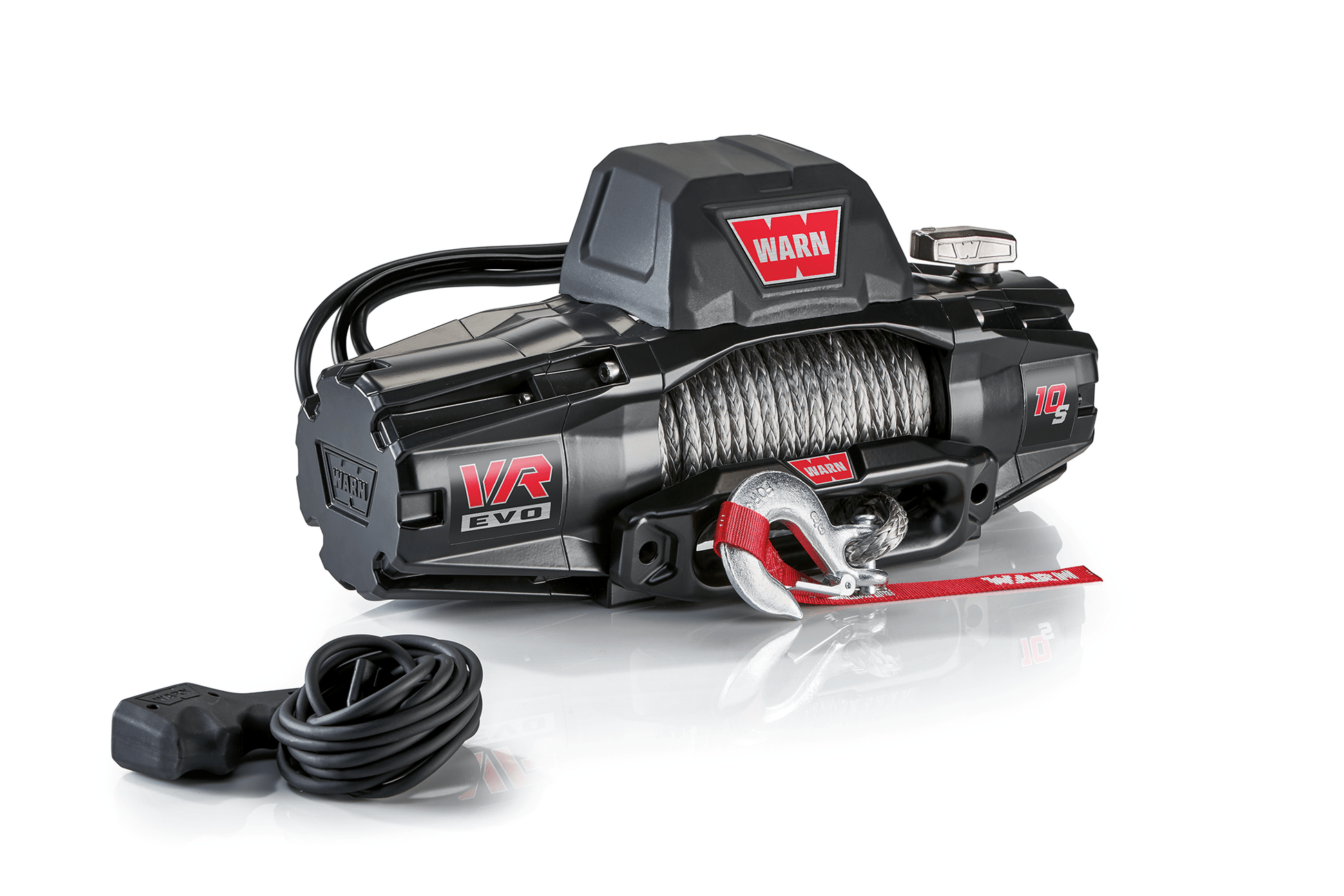

Warn EVO Winch 10-s Synthentic Rope

Ideal weight capacity and line speed for utes and larger 4x4s. The EVO 10 features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it’s fast line-speed and lower amp draw, the EVO series of winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.

  • A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw

  • IP68-rated waterproof winch construction keeps the elements out

  • High-performance Albright contactor delivers maximum reliability

  • Control packs can be relocated for low-profile installations

  • Durable, one-piece cast-aluminum tie-plate for added strength and durability

  • Two-in-one remote with wired AND wireless options for ease of use and versatility

  • Limited lifetime warranty for mechanical parts and 7 years on the electrical

  • Designed, engineered, and tested by WARN engineers in the U.S.A.


Specifications

Part number: EVO-10-S-103253
Rated line pull: 4536kg (10000 lbs.)
Motor: 12V series wound
Electrical controls: Albright Contactor
Remote Control: 2 in 1 plug-in remote with wireless capability and 3.5M lead
Geartrain: 3-Stage Planetary
Gear ratio: 218:1
Clutch (freespooling): Rotating ring gear
Brake: Spring brake
Drum diameter/Length: 6.73cm/23cm (2.5″/ 9.0″)
Shipping weight:  32.84 kg (72.4 lbs.)
Net product weight: 25.04 kg (55.2 lbs.)
Rope: 9.5mm x 27.4m (3/8″ x 90′)
Fairlead: Die cast hawse
Recommended Battery: 650 CCA minimum for winching
Battery leads: 25m x 2M
Finish: Powder coating over primer undercoating
