EVO-12-S-103255

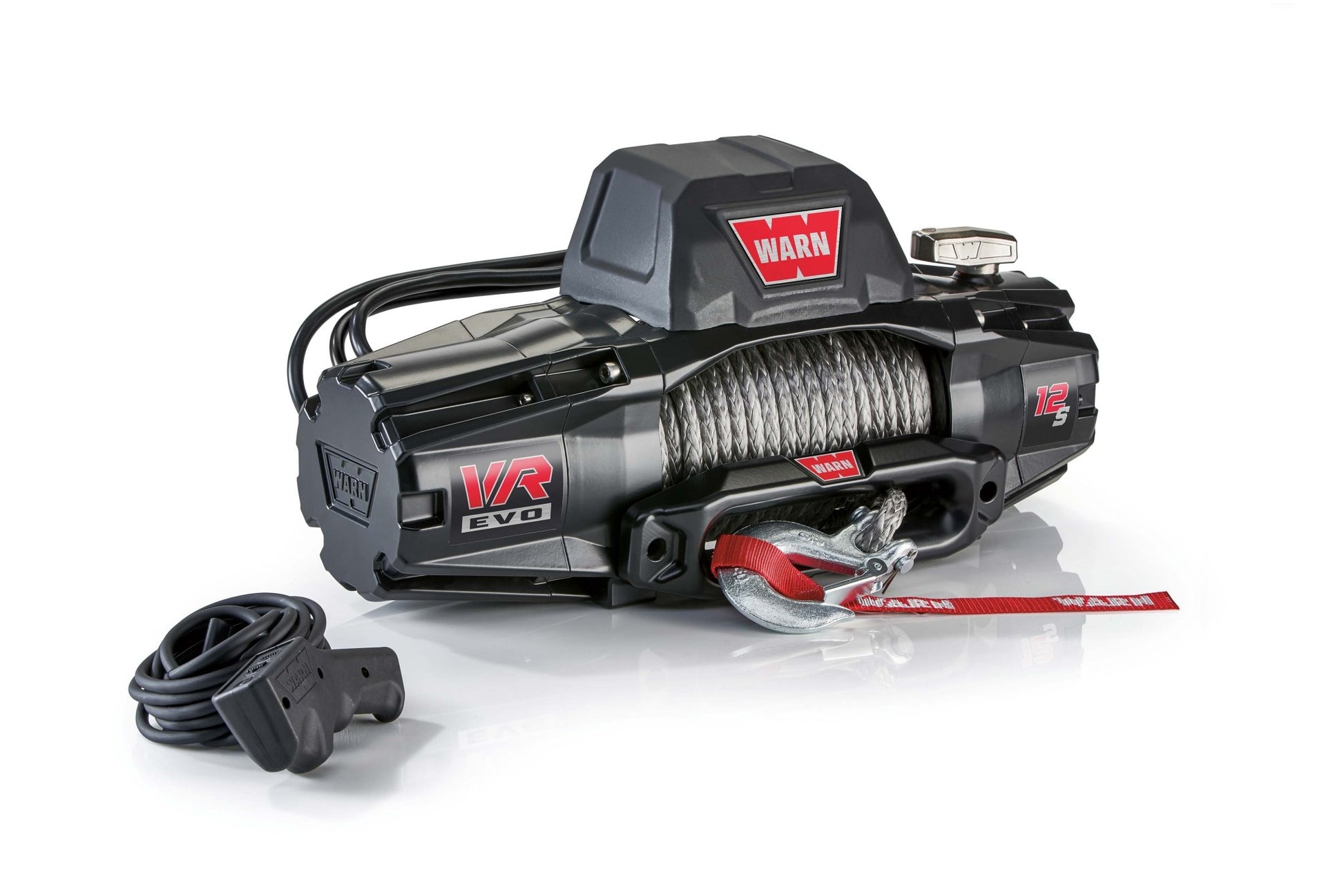

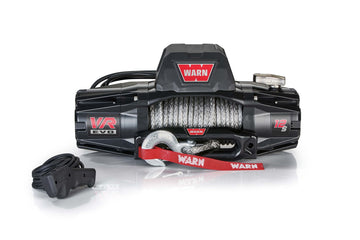

Warn Winch EVO 12-S



Great for 1-ton pickups and various large frame rigs that need extra power for longer, heavier pulls. The EVO 12 and 12-S boast a waterproof construction with IP68 rating, an Albright® contactor stored in a versatile control pack, and a cutting-edge, two-in-one remote for added convenience and flexibility. These winches are incredibly efficient with a fast line-speed and lower amp draw, making the EVO series the toughest standard-duty winches yet. The tactical design adds a great look to your vehicle without breaking your budget.

  • A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw

  • IP68-rated waterproof winch construction keeps the elements out

  • High-performance Albright contactor delivers maximum reliability

  • Control packs can be relocated for low-profile installations

  • Durable, one-piece cast-aluminum tie-plate for added strength and durability

  • Two-in-one remote with wired AND wireless options for ease of use and versatility

  • Limited lifetime warranty for mechanical parts and 7 years on the electrical

  • Designed, engineered, and tested by WARN engineers in the U.S.A.


Specifications

Part number: EVO-12-S-103255
Rated line pull: 5443kg (12000 lbs.)
Motor: 12V series wound
Electrical controls: Albright Contactor
Remote Control: 2 in 1 plug-in remote with wireless capability and 3.5M lead
Geartrain: 3-Stage Planetary
Gear ratio: 234:1
Clutch (freespooling): Rotating ring gear
Brake: Spring brake
Drum diameter/Length: 6.73cm/23cm (2.5″/ 9.0″)
Shipping weight:  32.78 kg (72.27 lbs.)
Net product weight: 24.98 kg (55.07 lbs.)
Rope: 9.5mm x 27.4m (3/8″ x 90′)
Fairlead: Die cast hawse
Recommended Battery: 650 CCA minimum for winching
Battery leads: 25m x 2M
Finish: Powder coating over primer undercoating
