BDS1819FSHTO

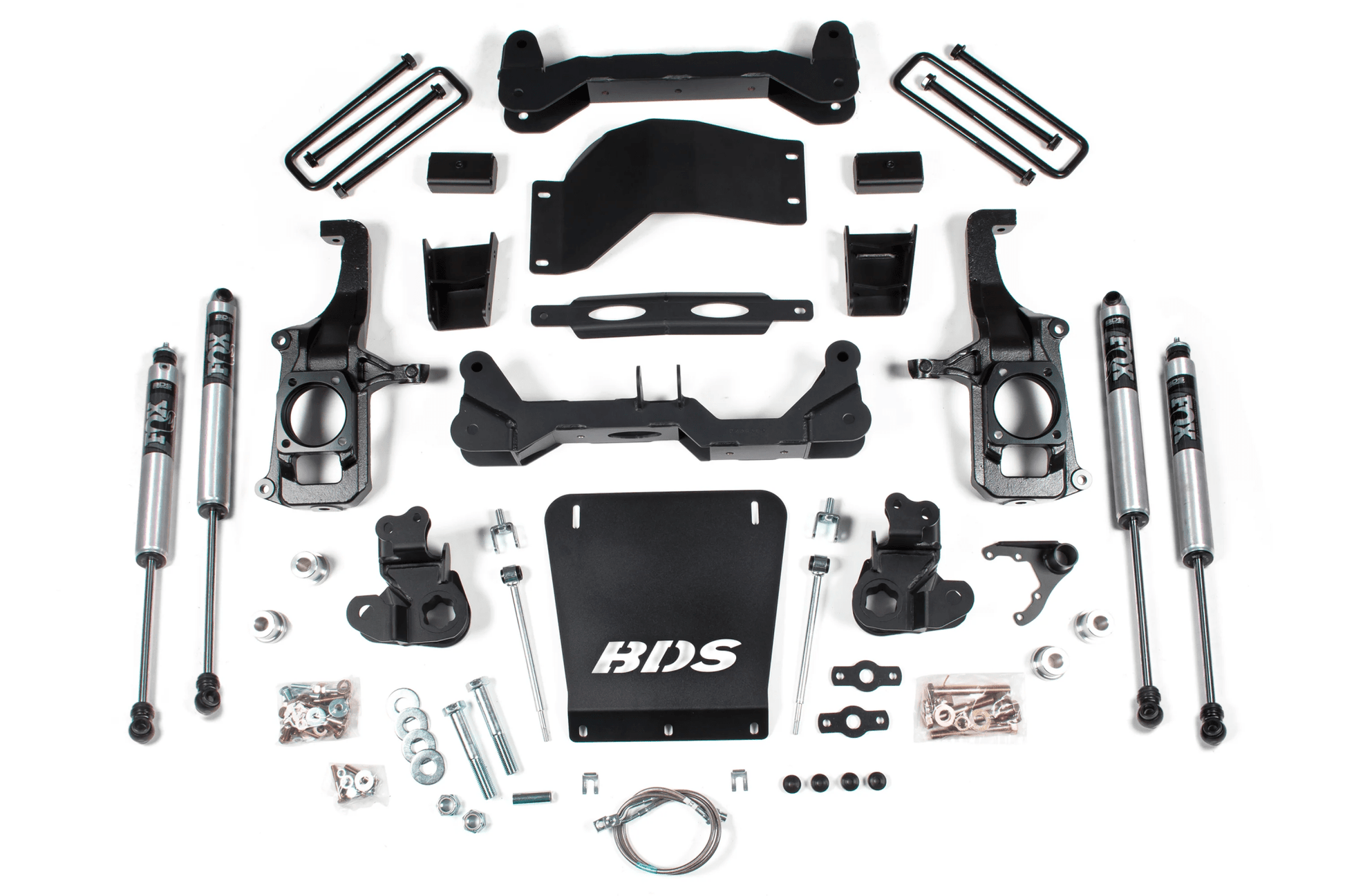

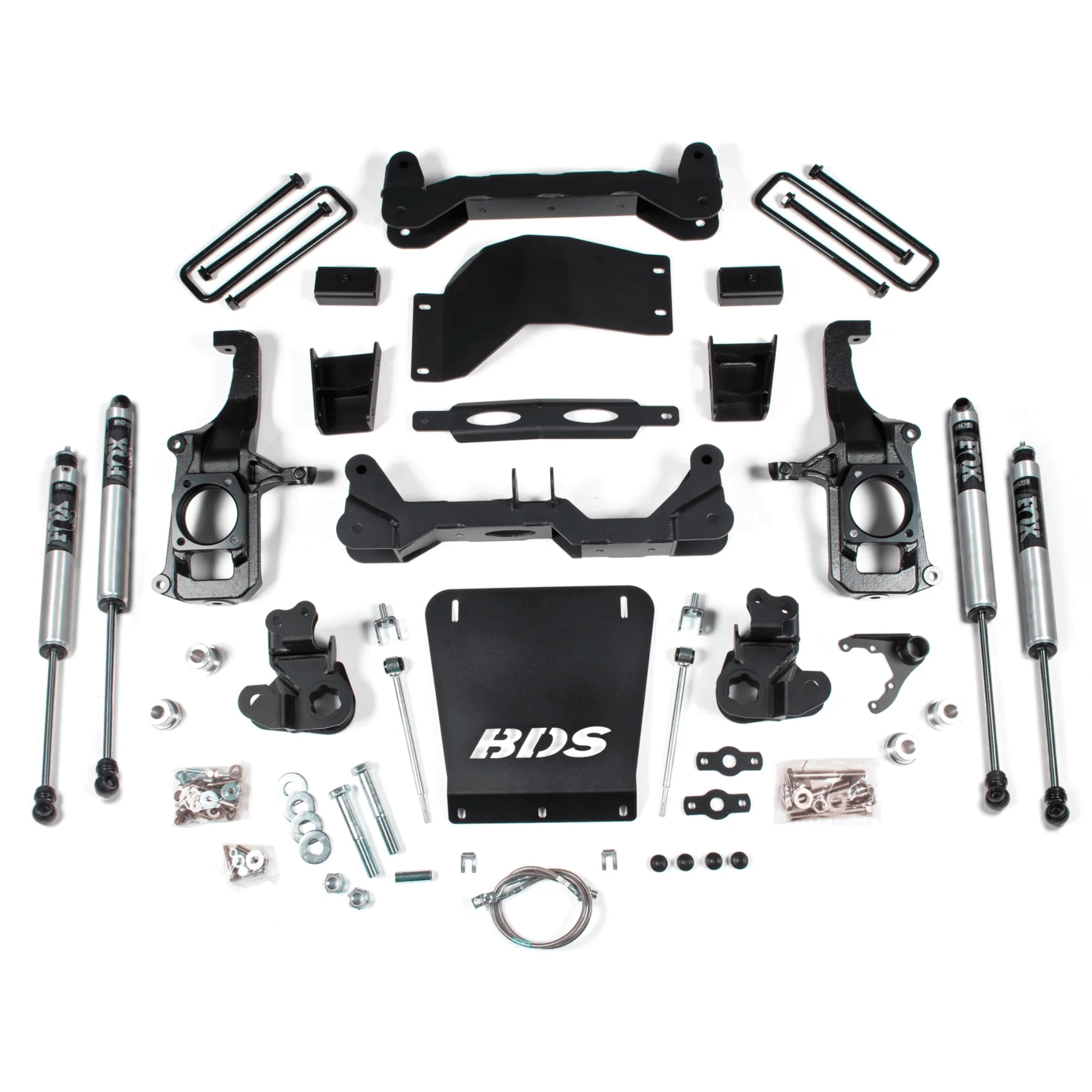

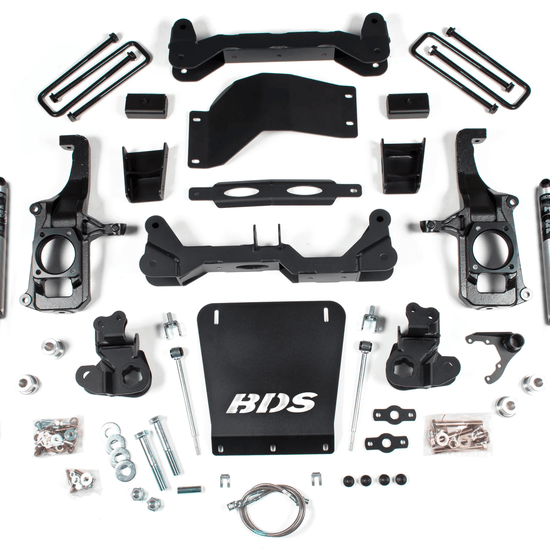

BDS 4.5 Inch Lift Kit Fox 2.0 | Chevy Silverado Or GMC Sierra 2500HD/3500HD (11-19)

or a first payment of $6675.00 and 3 interest free payments of $375.00
with
×
Shop online now,
pay over time.
Get 6 weeks to pay, interest free.
Choose Zip at checkout
Quick and easy. Interest Free.
Use your debit or credit card
Apply in minutes with no long forms.
Pay in fortnightly instalments
Enjoy your purchase straight away.
Eligibility criteria and late fees apply.
Read our complete terms and privacy policies
© 2021 Zip Co Limited
Shock Upgrade

Pickup available at Offroad Industries

Usually ready in 24 hours

 BDS 4.5" Lift Chevy Silverado 2500HD/3500HD 11-19



Experience improved stance, performance, and capability for your 2011-2019 Chevy Silverado or GMC Sierra 2500HD with BDS's 4.5-inch lift kit. This remarkable kit is designed to maximize ground clearance by eliminating the need for a torsion bar drop system. With the torsion bars mounted directly to the lower a-arm, you'll gain enough clearance to fit up to 35" tyres. Elevate your truck to the next level with this essential upgrade.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar links, bump stop extensions, stainless steel brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers replacement lift blocks to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear is a u-bolt flip kit for max clearance and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function.

Features & Benefits

  • High Clearance design w/ no torsion bar drop maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included
  • Choice of NX2 or FOX 2.0 gas shocks for improved performance

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 8 and 4.625 in. Backspace
  • 35 x 12.5 with 18 x 9 and 4.625 in. Backspace
  • 35 x 12.5 with 20 x 9 and 6 in. Backspace
