985-02-134

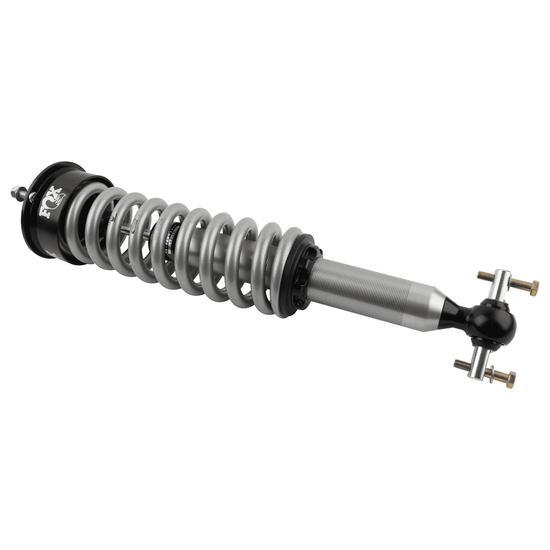

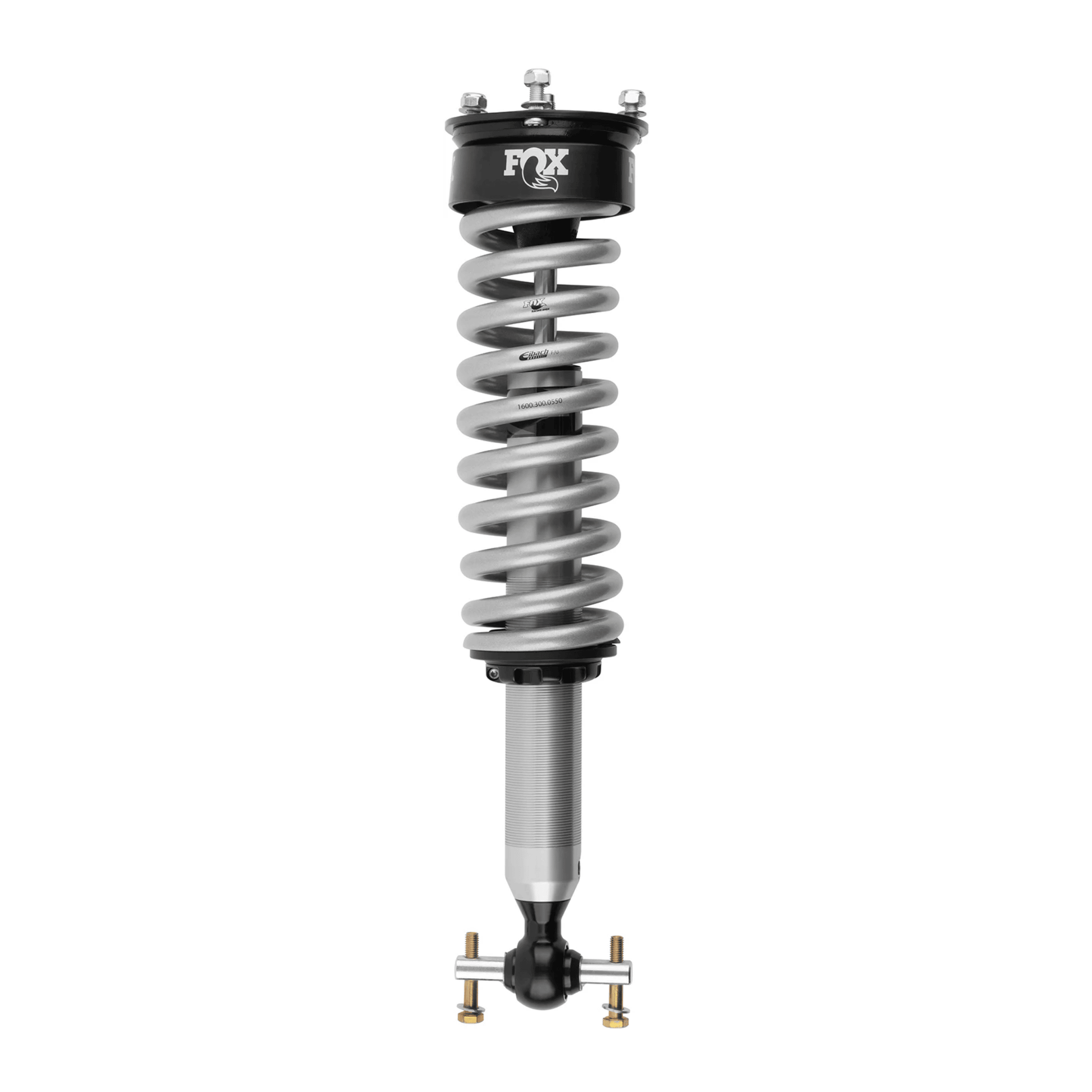

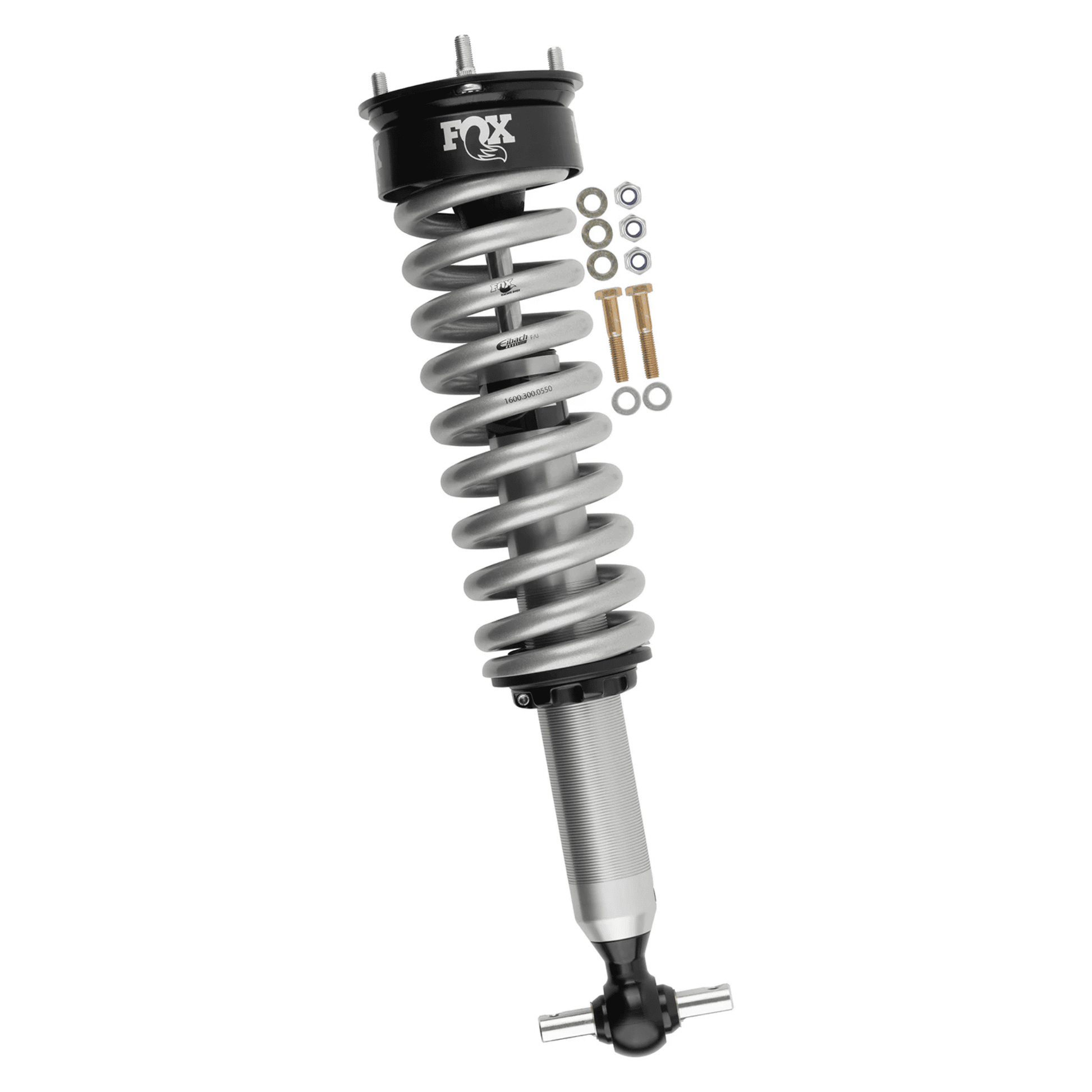

Unleash the full potential of your vehicle with our revolutionary Performance Series Coil-over IFP shock. Perfectly designed to handle any terrain, this shock features cutting-edge technology and a multitude of impressive features. With its durable metal impact extruded aluminium body, you can conquer any challenge with confidence. Plus, its rust resistance and noise and vibration isolating composite bushing make it the perfect upgrade for your Chevrolet Silverado 1500.
Easily adjust your ride height and preload with locking spring preload rings, while maintaining top quality racing coils carefully chosen for the perfect spring rate. The Performance Series Coil-Over IFP shocks require no modifications and are specifically designed to level your truck from front to back. Available for both stock and lifted trucks, with the option to reuse the original shocks.
Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
PART NUMBER | 985-02-134 |
FEATURES | Performance Tuned For Vehicle Specific Application; Aluminium Body Dissipates Heat Faster Than Steel; Ifp Separates Oil From High-Pressure Nitrogen Gas; Black Anodised Cnc Machined Aluminium Components |
SERIES | Performance |
TRAVEL | 4.59 |
FRONT LIFT HEIGHT | 0-2 |
BODY | 2.0” Impact extruded and CNC machined 6061-T6 clear anodised aluminium one-piece body resists rust over time |
BODY PLATING | Clear-anodised for a durable finish |
COMPONENTS | Black-anodised, CNC-machined 6061-T6 billet aluminium |
SHAFT | 5/8" hard chrome plated heat-treated alloy steel |
PISTON | Race-developed high-flow piston design |
VALVING | Application specific valving to maximize performance |
SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
BEARINGS | Large diameter, heavy-duty spherical |
EXTENDED LENGTH | 20.99 |
COMPRESSED LENGTH | 16.4 |

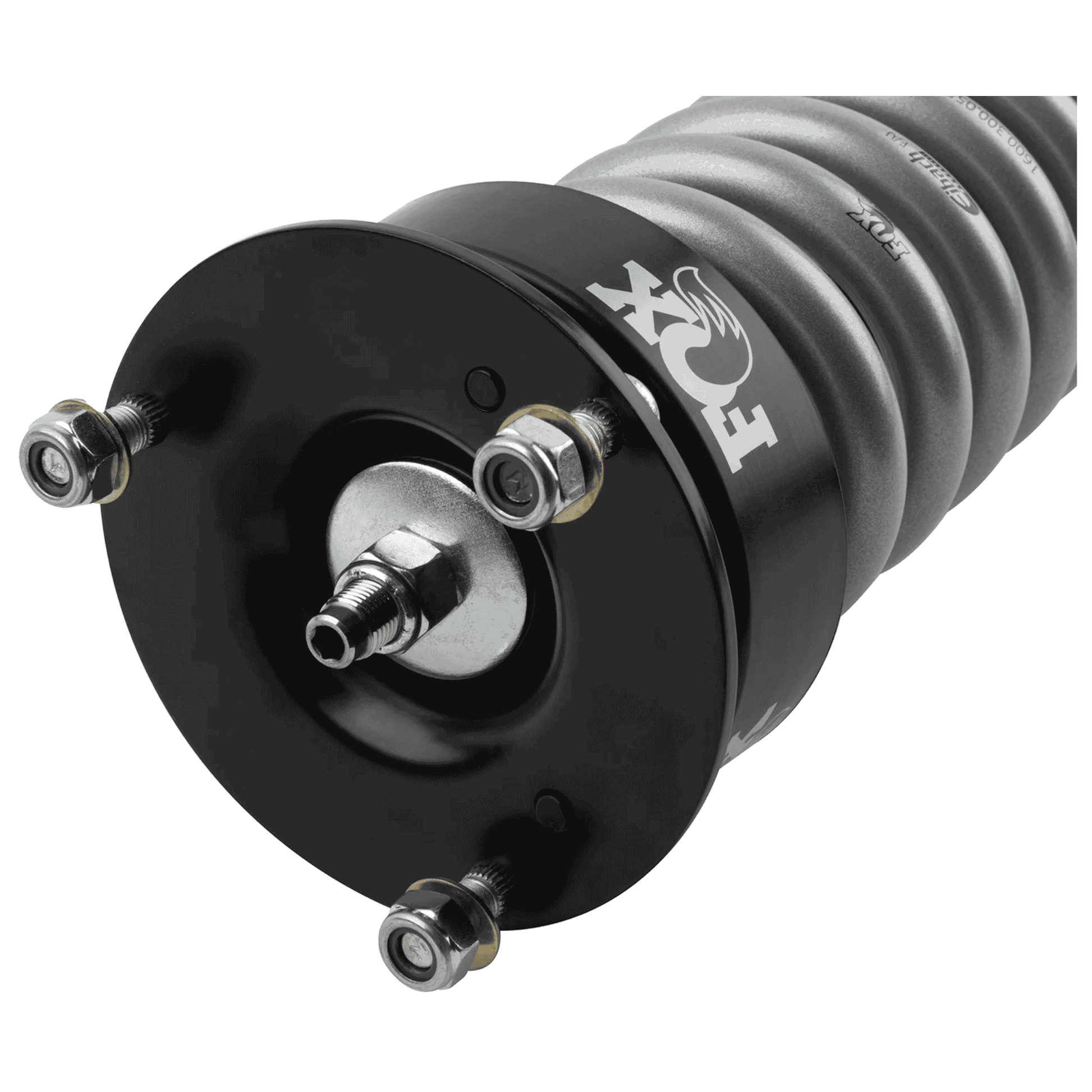

TOP MOUNT | TM |

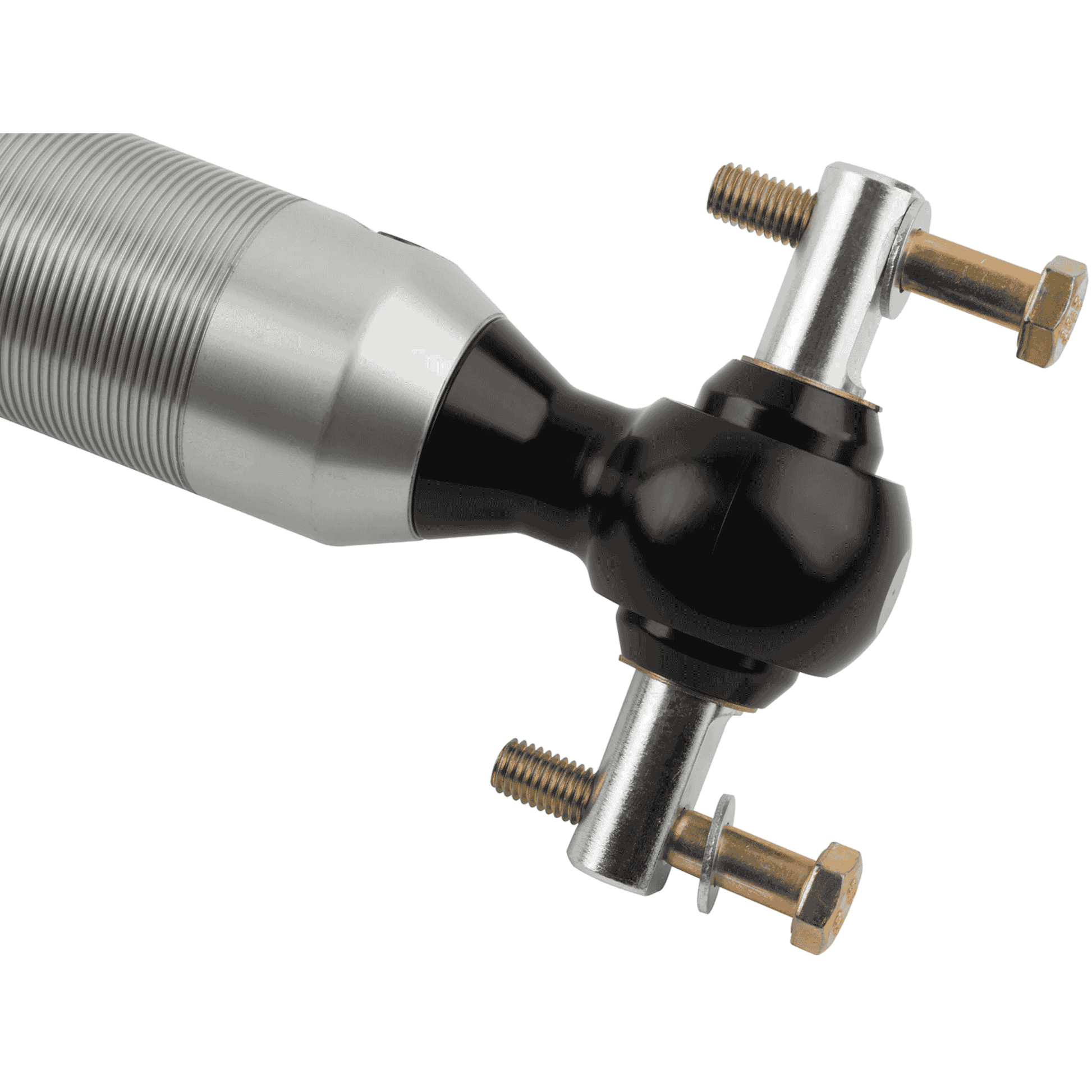

BOTTOM MOUNT | Bar Pin |
FITMENT NOTES | Trail Boss Models Fit 0" Lift Only |
