985-02-156

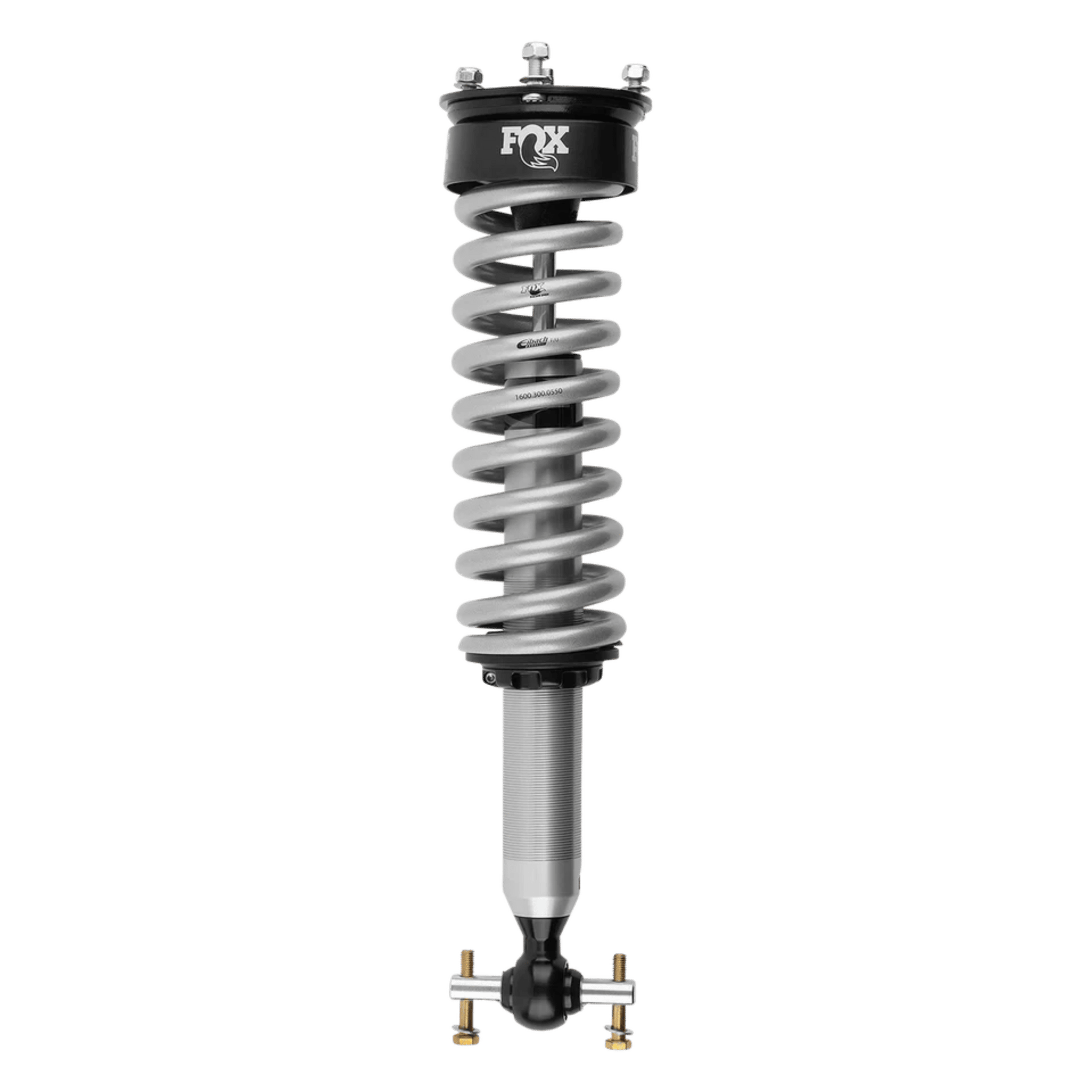

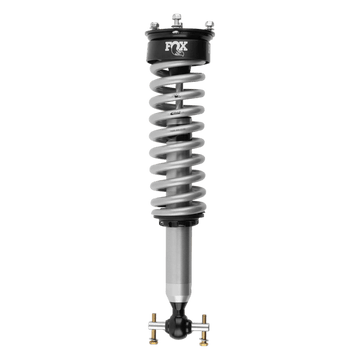

Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminium body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.
Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.
Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
PART NUMBER | 985-02-156 |
FEATURES |
2.0 impact-extruded and CNC-machined 6061-T6 clear anodized aluminum one-piece body Application-specific springs 5/8 hard chrome-plated steel shafts Vehicle-specific valving to maximize performance Redundant sealing pack system: main seal, wiper seal, scraper seal |
SERIES | Performance |
TRAVEL | 4.47 |
BODY | 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
BODY PLATING | Clear-anodized for a durable finish |
COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
PISTON | 5/8" hard chrome plated heat-treated alloy steel |
VALVING | Two-stage shim stack increases off-road bottom-out resistance while mitigating road vibration and harshness |
SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
BEARINGS | Large diameter, heavy-duty spherical |
EXTENDED LENGTH | 23.31 |
COMPRESSED LENGTH | 18.84 |
TOP MOUNT | TM |
BOTTOM MOUNT | Bar Pin |
FITMENT NOTES | Trail Boss and AT4 models requires UCA. |
