987-24-030

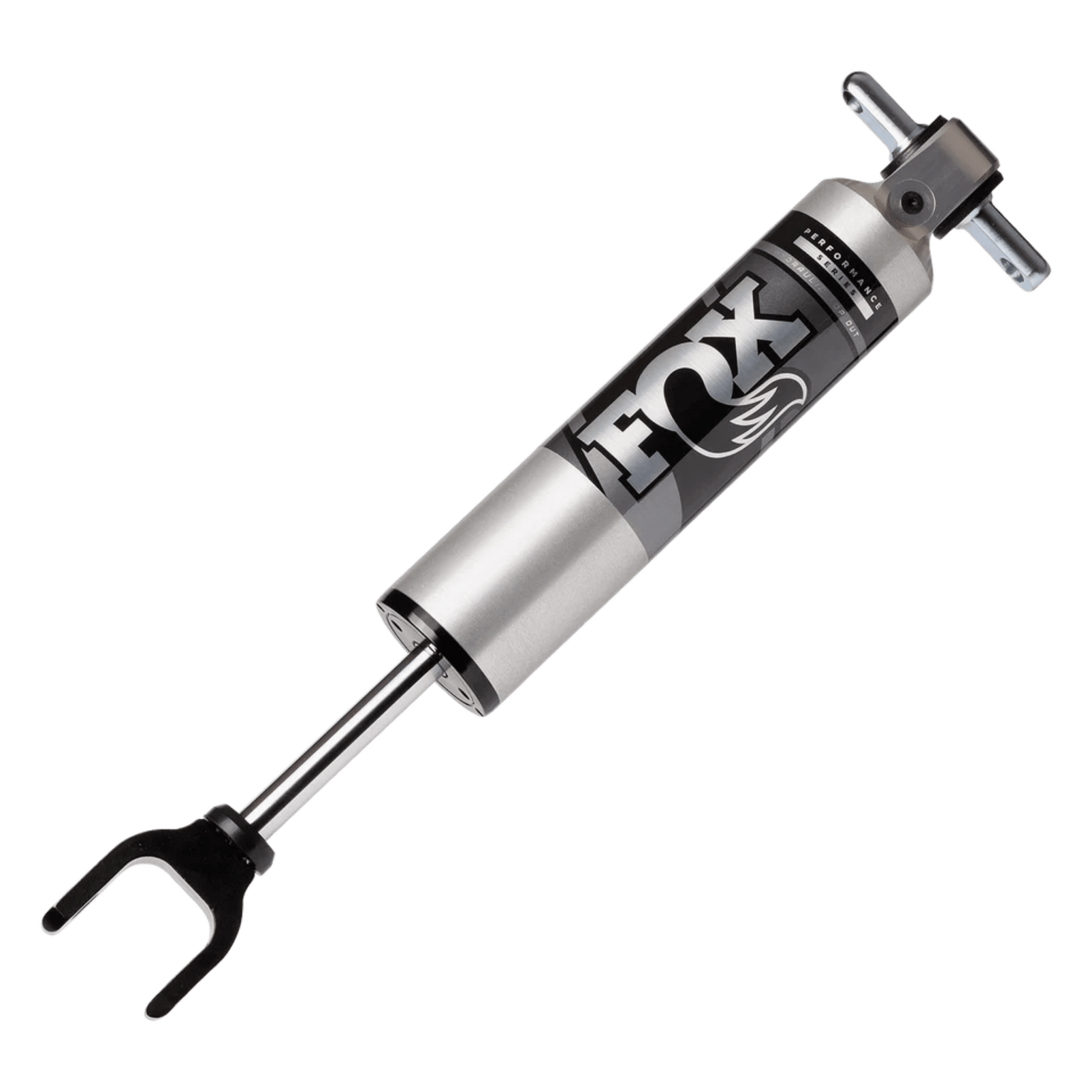

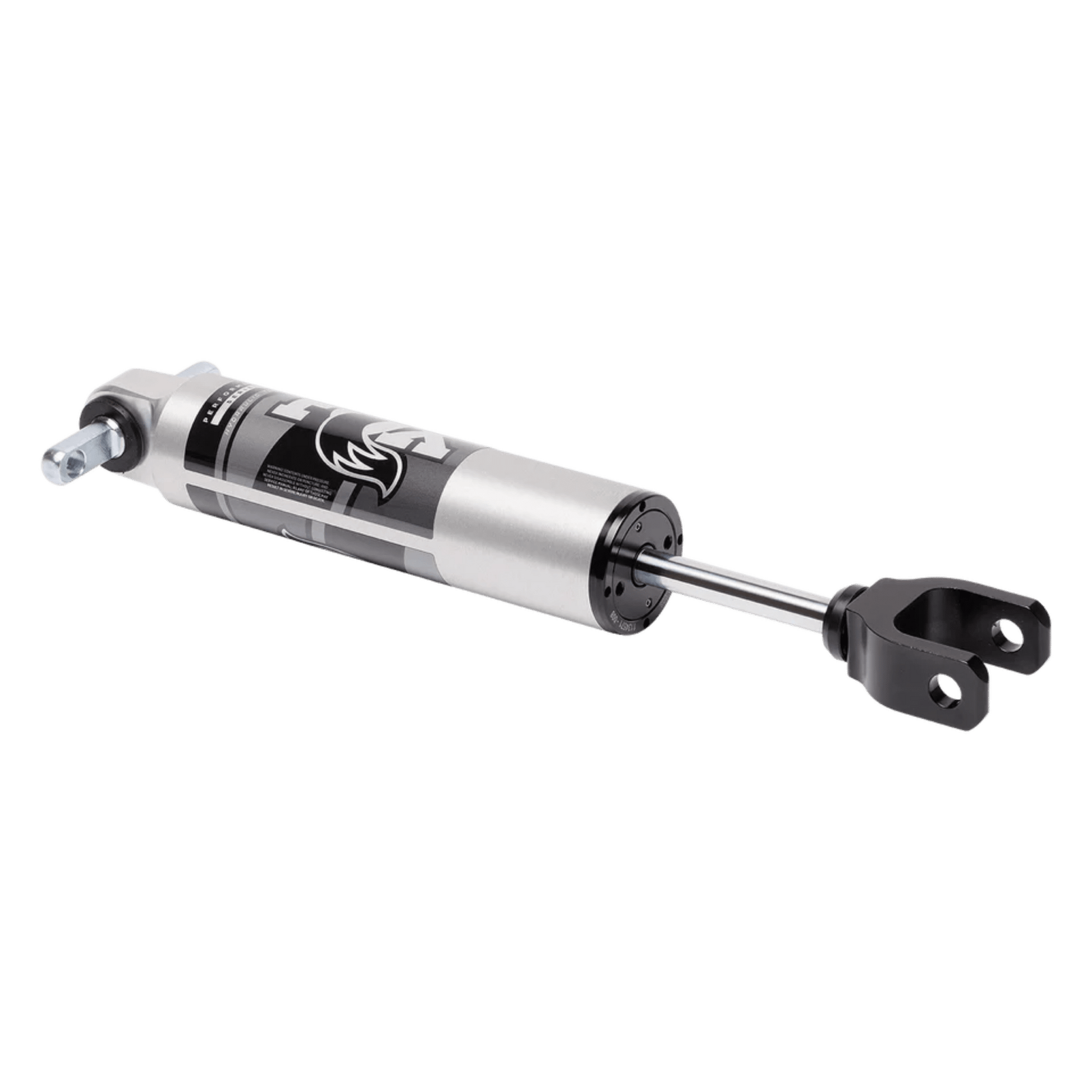

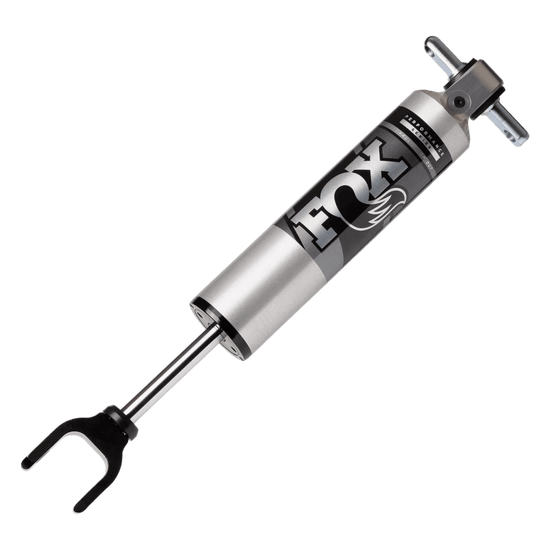

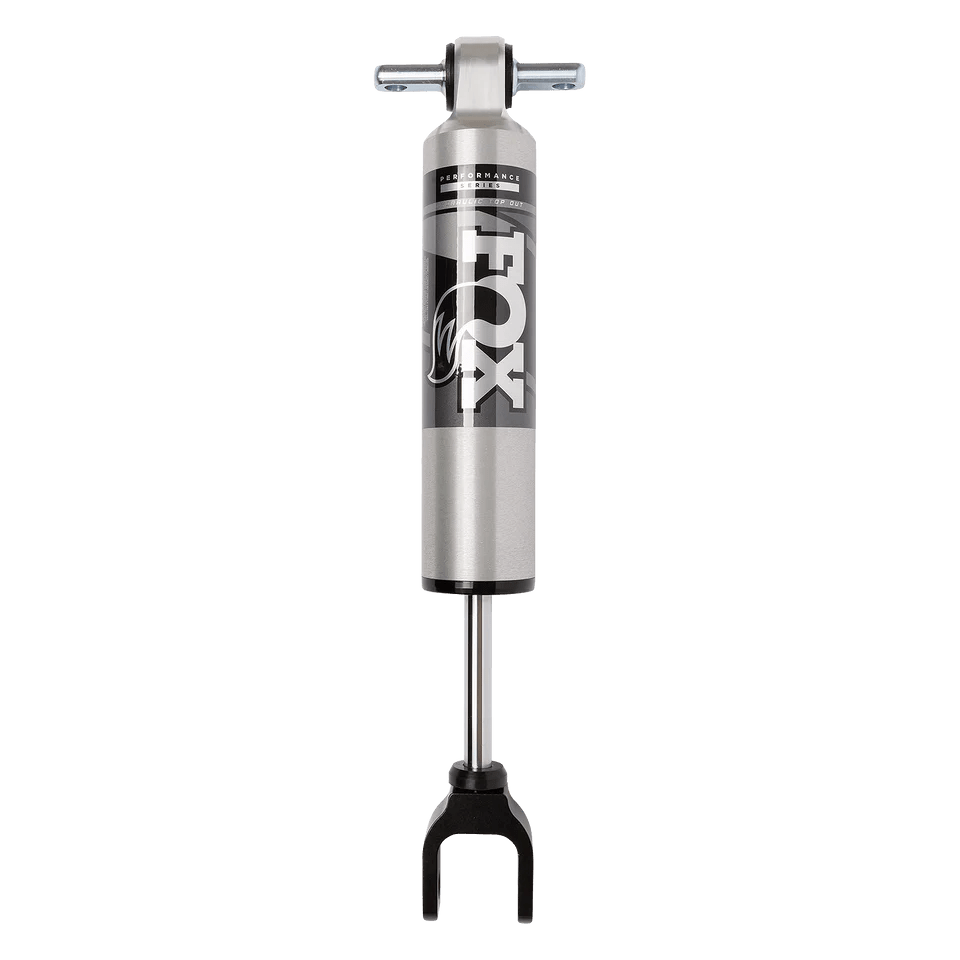

Enhance your Chevrolet Silverado 2500HD's performance on and off the road with the FOX 2.5 Performance Series HTO shock, equipped with advanced position-sensitive technology and custom vehicle-specific valving. Its larger pistons provide optimal damping while the anodized aluminum body effectively dissipates heat and prevents corrosion. With a 2.5-inch shock body and internal floating piston (IFP), this shock is a game-changer for any adventure seeker!
Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.
Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
PART NUMBER | 987-24-030 |
FEATURES | 2.5” Impact extruded 6061-T6 aluminum shock body Type II clear-anodized body plating High-flow velocity-sensitive damping 5/8” hard chrome shaft Internal floating piston (IFP) Hydraulic Top Out (HTO) piston |
TRAVEL | 4.89 |
FRONT LIFT HEIGHT | 0-1 |
EXTENDED LENGTH | 17.95 |
COMPRESSED LENGTH | 13.07 |
TOP MOUNT | Bar Pin |
BOTTOM MOUNT | Clevis |
FITMENT NOTES | Lift: 0-1 inch |
