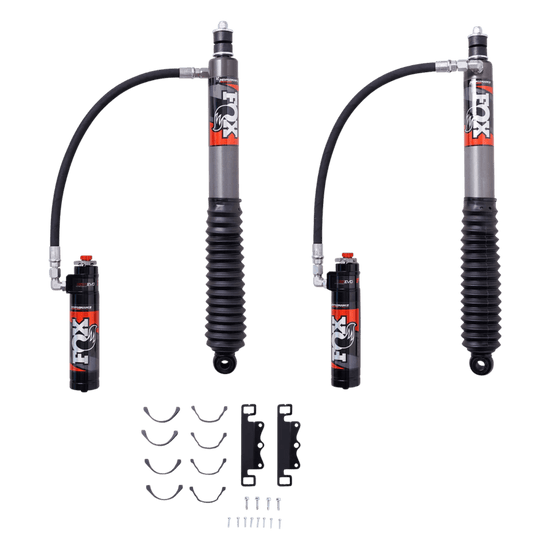

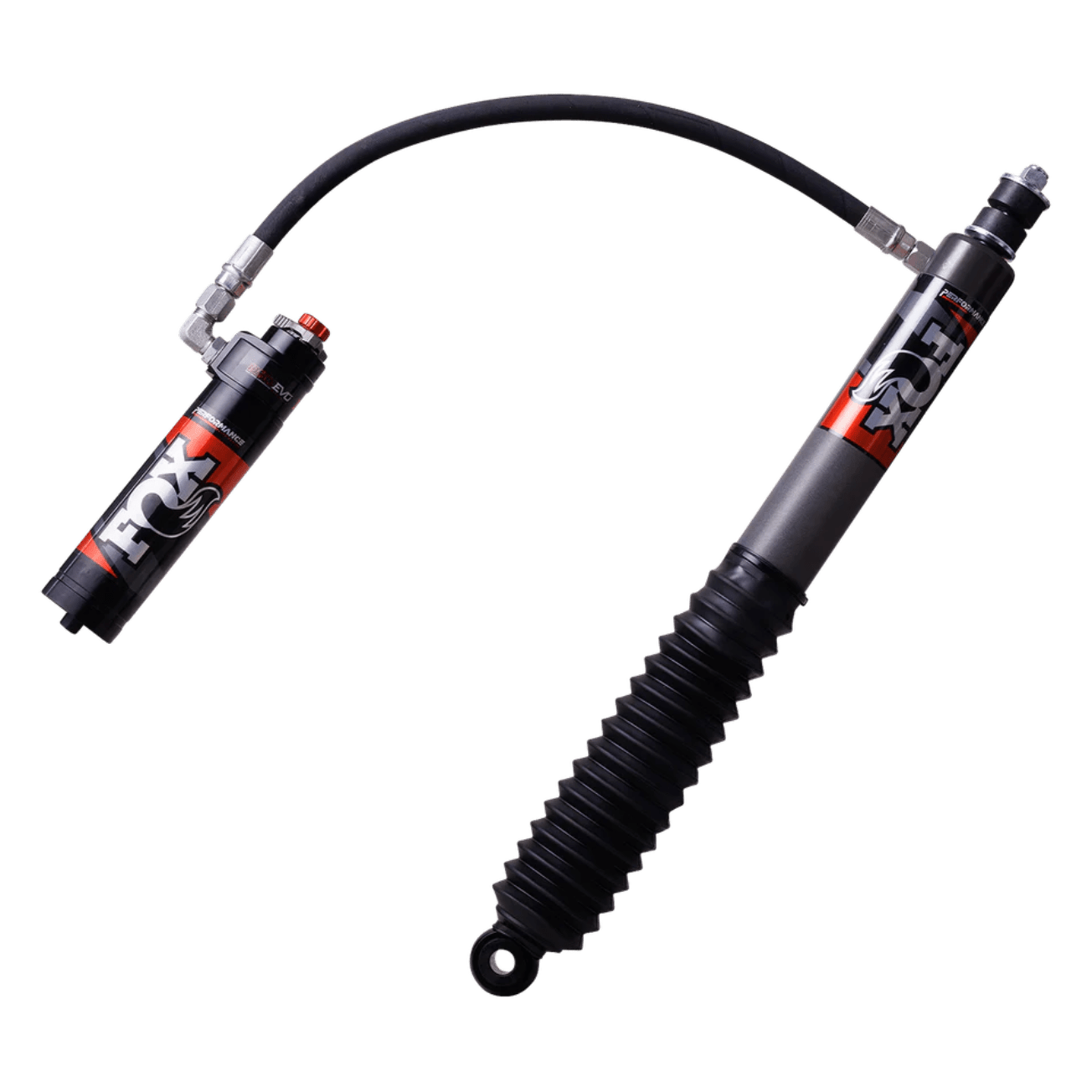

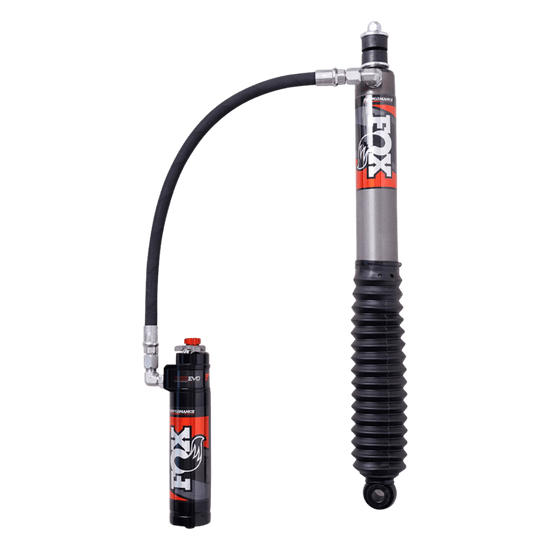

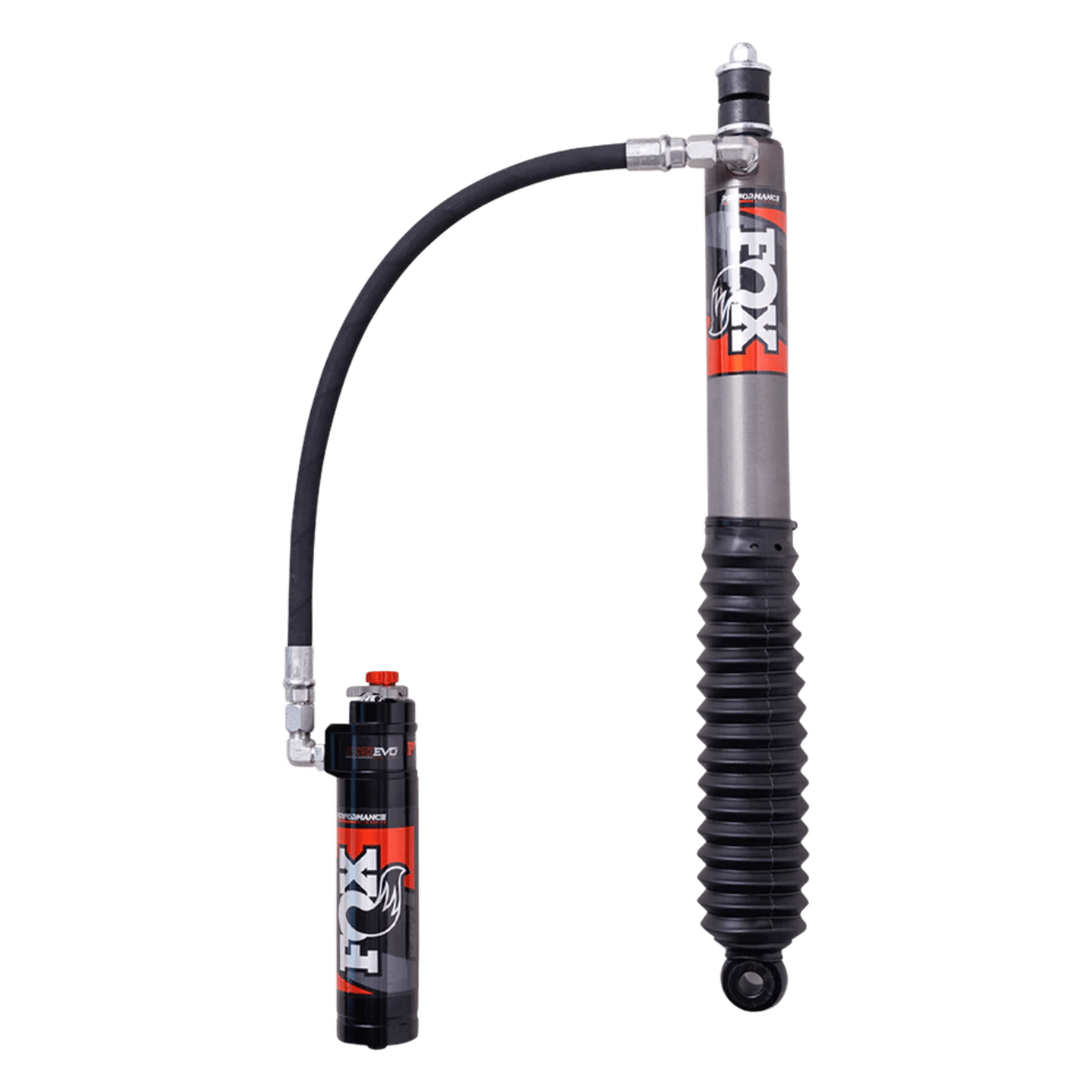

FOX PERFORMANCE SERIES 2.5 Rear Suspension for Toyota Land Cruiser LC300 22+

FOX PERFORMANCE SERIES 2.5 Rear Suspension for Toyota Land Cruiser LC300 22+

FOX Performance Elite Series 2.5 improve the LC300 and LX600 chassis by eliminating the vehicle’s forward rake, providing a level ride height, and increasing the suspension articulation. Type III anodisation prevents corrosion and wear of the 2.5-inch aluminium bodies. External reservoirs increase oil capacity and decrease the harshness associated with nitrogen ramp-up. Each reservoir features a Dual Speed Compression Evolution (DSC EVO) adjuster strategically mounted to eliminate interference with aggressive tires at full lock. DSC EVO features Variable Valve Control (VVC) on the high-speed circuit. VVC doesn't add preload to the shim stack to adjust high-speed damping. The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of high speed compression without sacrificing small-bump sensitivity. Performance Elite shocks with DSC EVO provide versatility without compromise to navigate rough terrain and enhance on-road manners while remaining comfortable and in control.



Suit LC300 22-25 & Lexus LX600 22-25

PART NUMBER 883-26-155
FEATURES

2.5" impact-extruded and CNC-machined 6061-T6 Type III anodised aluminium body

7/8" hard chromed steel shafts

Vehicle-specific tuning maximises performance

Redundant sealing pack system: main seal, wiper seal, scraper seal

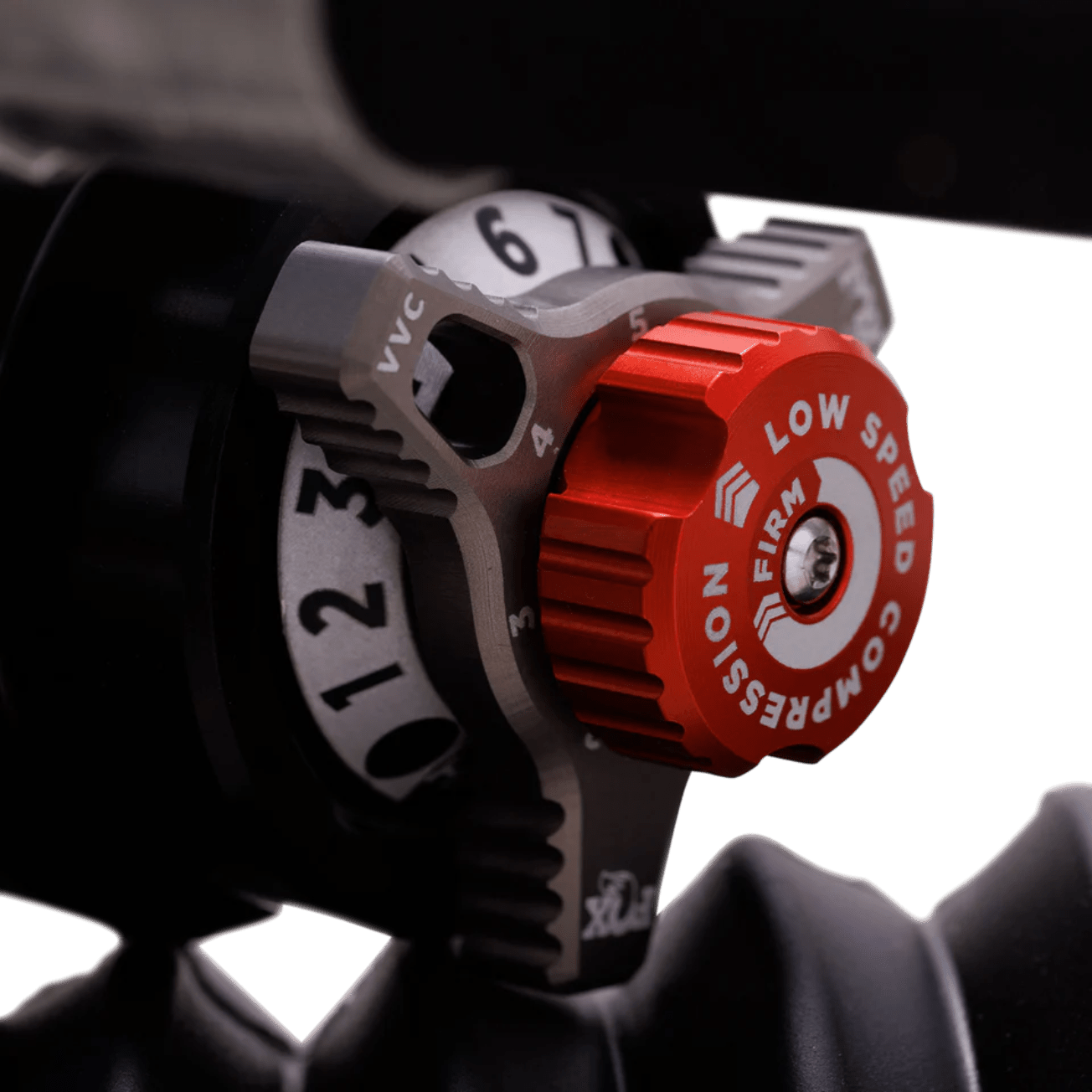

External reservoir, with DSC EVO adjuster

SERIES Performance Elite
TRAVEL 9.48
BODY 2.5" Impact extruded and CNC machined 6061-T6 hard anodised aluminium body resists rust over time
BODY PLATING Hard-anodised for a durable finish
COMPONENTS Black-anodised, CNC-machined 6061-T6 billet aluminium
SHAFT 7/8" hard chrome plated steel shafts
EXTENDED LENGTH 25.78
COMPRESSED LENGTH 16.3
TOP MOUNT Eyelet
BOTTOM MOUNT Eyelet
FITMENT NOTES Heavy Duty version designed for additional payload
