883-26-147
Experience superior performance with FOX Factory Race Series 3.0 Internal Bypass shocks, designed specifically for the LC300 and LX600 chassis. Featuring advanced damping technology and DSC EVO adjustment, these shocks offer unparalleled control and high-speed capabilities for a seamless installation.

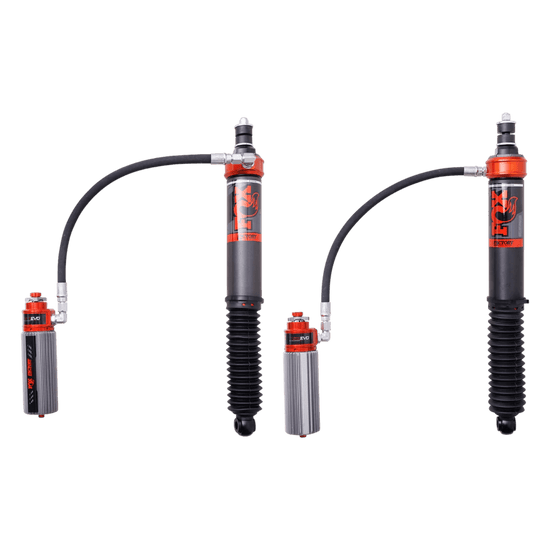

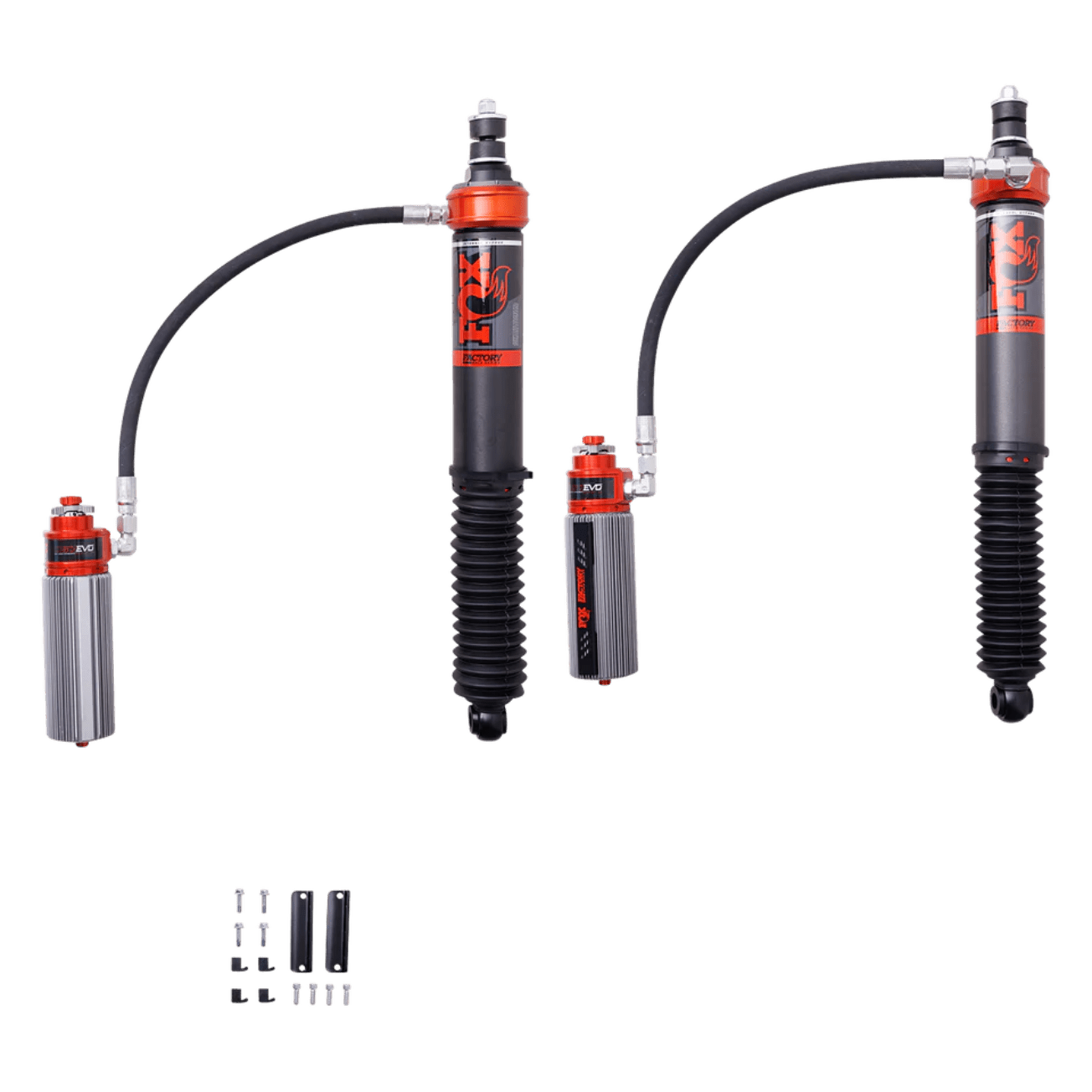

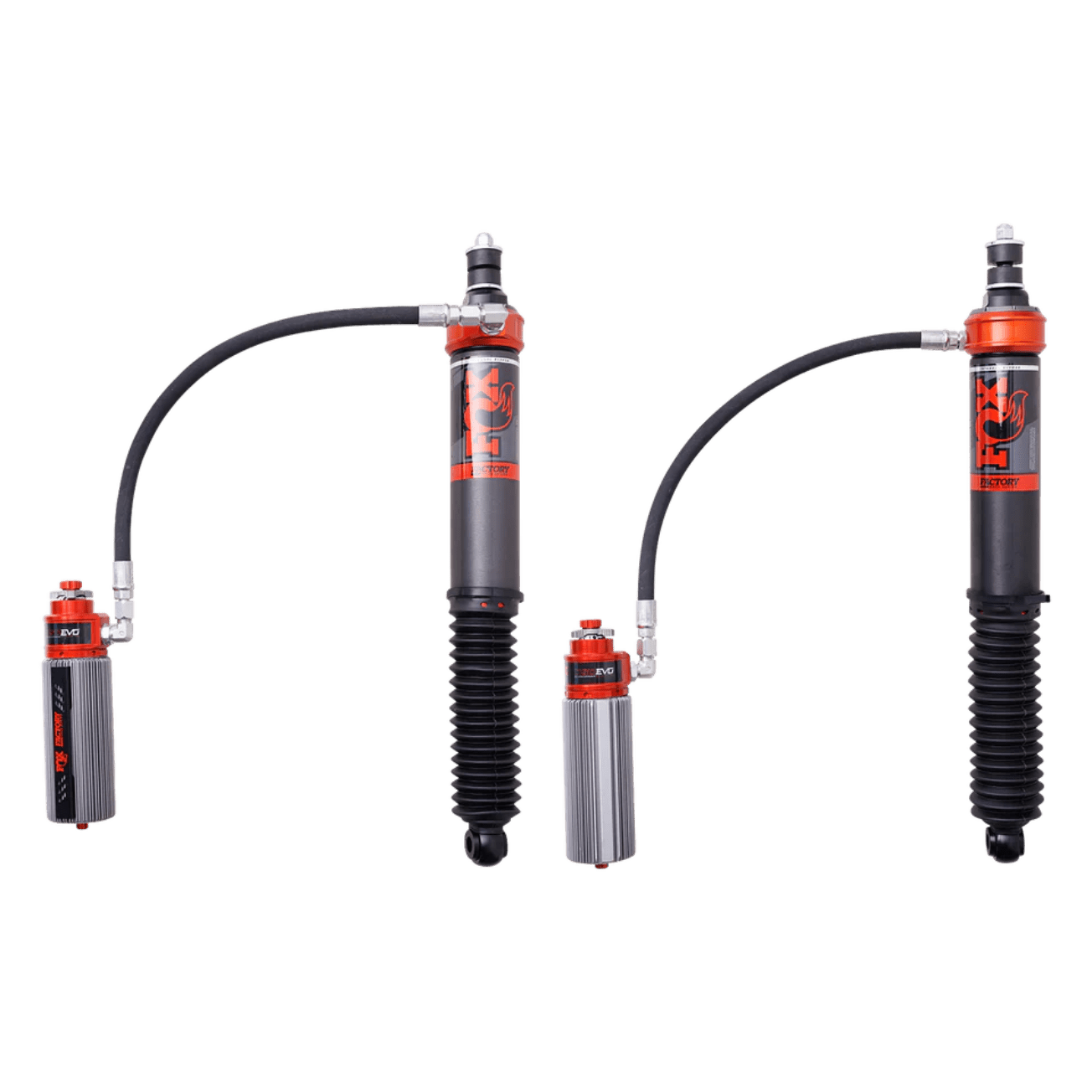

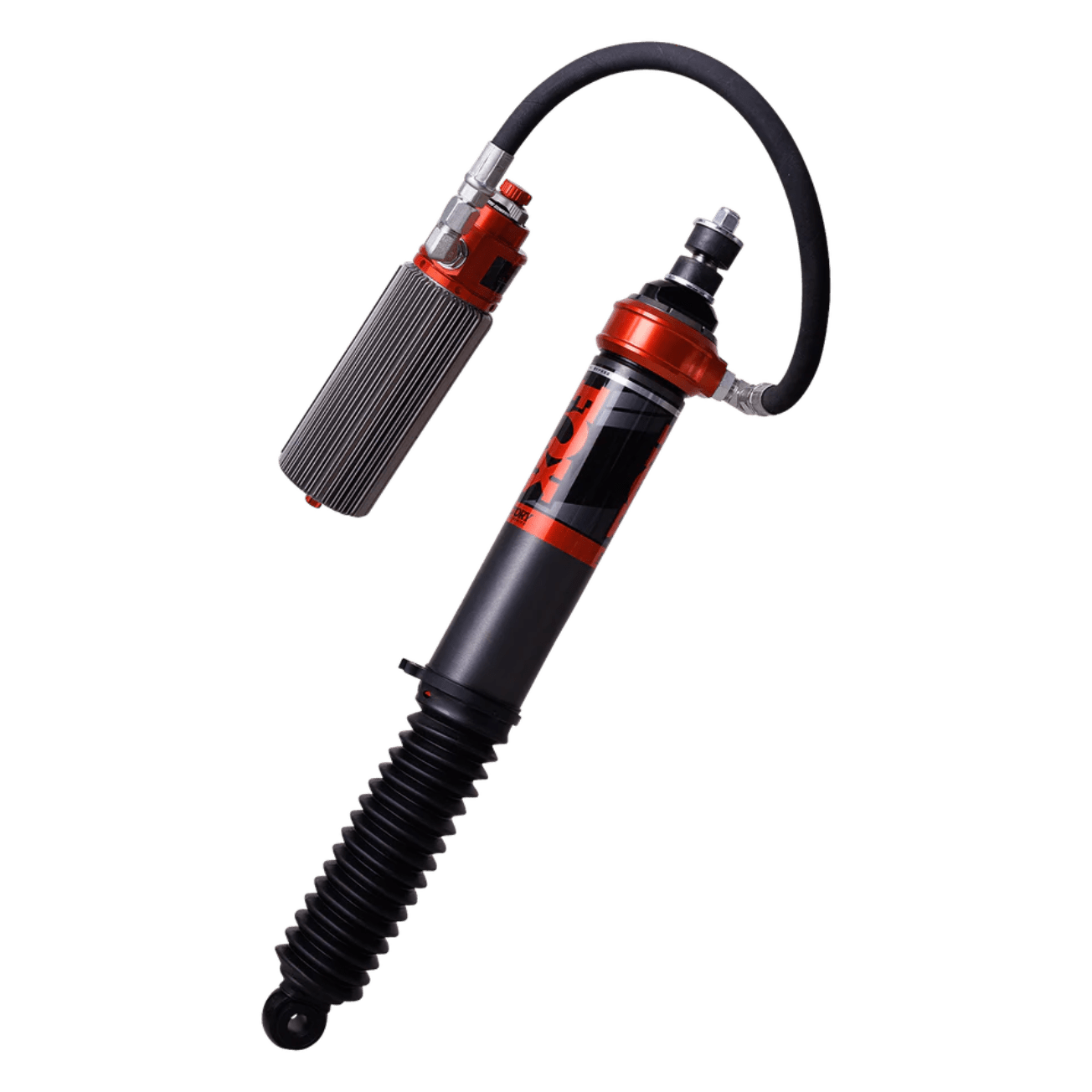

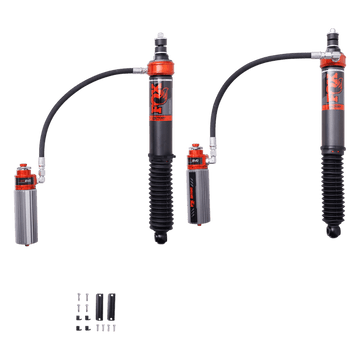

Experience the advanced performance of FOX Race Series 3.0 Rear Suspension for Toyota Land Cruiser LC300 22+. With patented Internal Bypass technology, this suspension offers superior damping control in multiple zones. Feel the confidence and comfort as you take on rough terrain, with increased damping force. And with internal bypass shocks, you'll experience progressive force to prevent bottom-outs and top-outs, and a smooth landing with an initial catch on impact. Don't settle for anything less than the best - upgrade to FOX Race Series 3.0 today!

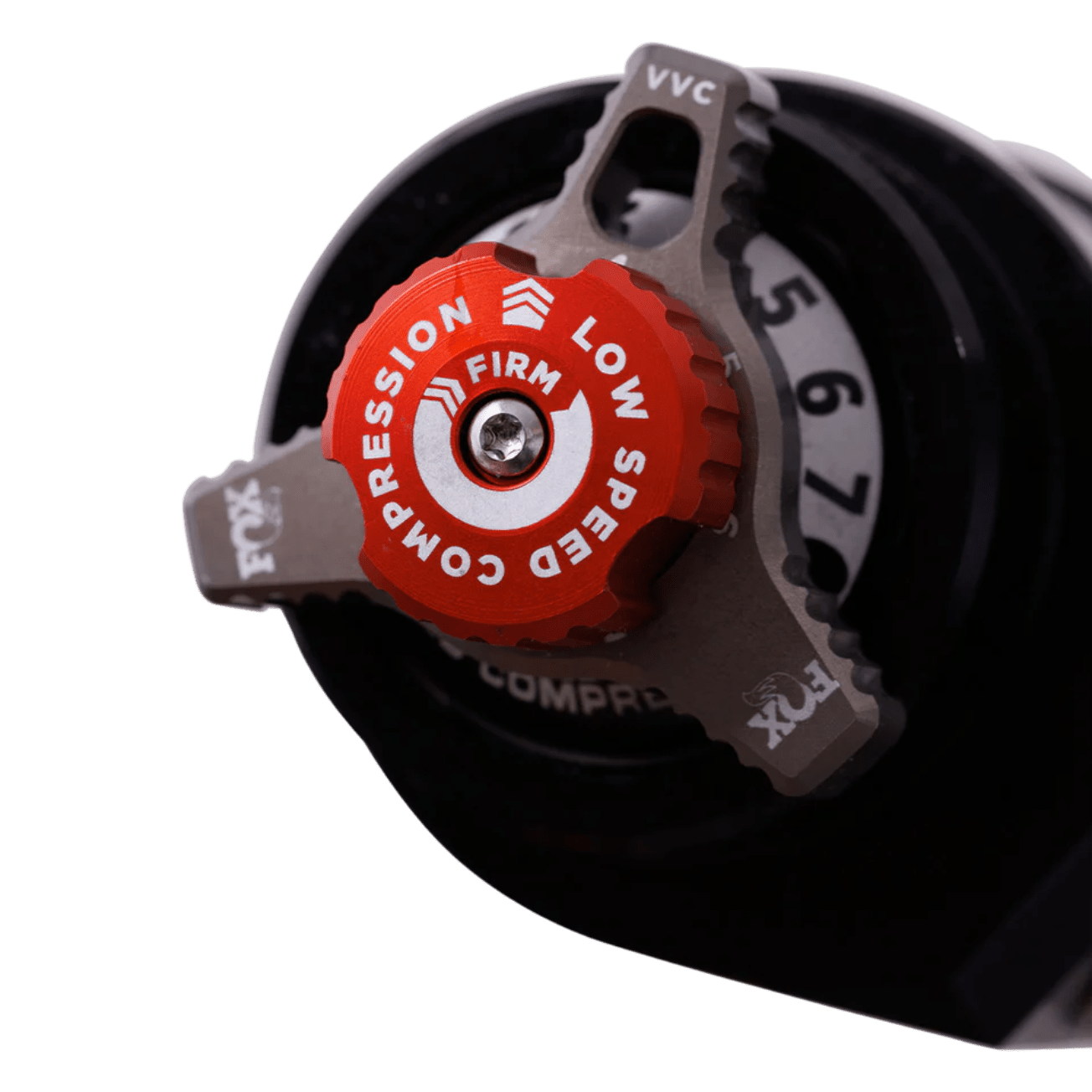

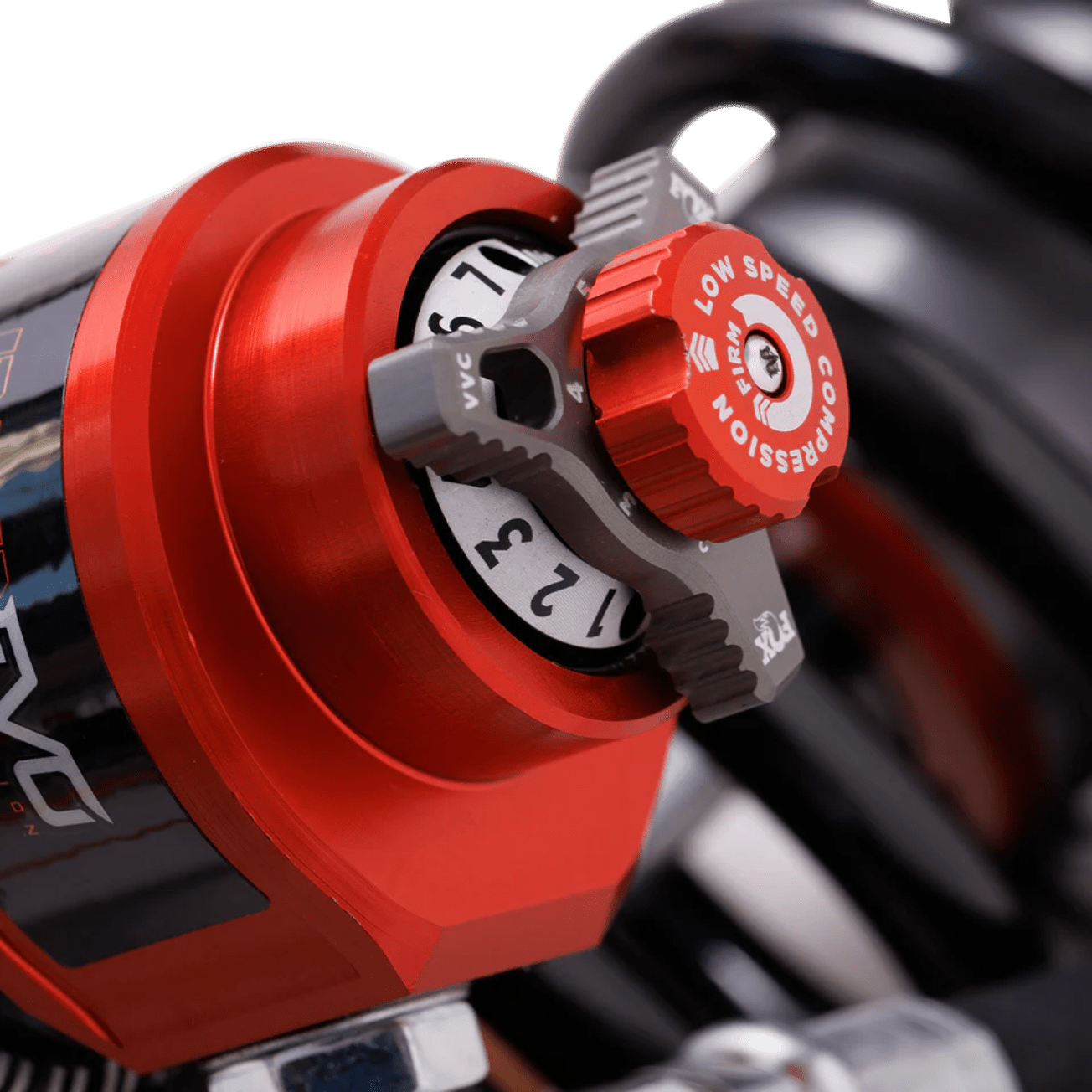

Type II anodisation prevents corrosion and wear of the 3.0-inch diameter aluminium bodies. Finned reservoirs increase oil capacity, house an IFP, and feature a DSC EVO adjuster. DSC EVO utilises Variable Valve Control (VVC) on the high-speed circuit. VVC doesn't add preload to the shim stack to adjust high-speed damping. The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of high-speed compression without sacrificing small-bump sensitivity.
FOX 3.0 shocks with Internal Bypass provide the support, adjustment, and confidence you need while driving at speed. Experience race-bred performance next time you leave the pavement.
PART NUMBER | 883-26-147 |
FEATURES |
3.0" impact-extruded and CNC-machined 6061-T6 Type II anodized aluminum body Position- and velocity-sensitive damping maximize control through any terrain. Patented, Internal Bypass design Finned remote reservoir with DSC EVO adjuster Application-specific springs and vehicle-specific tuning maximizes performance. 7/8" hard chromed steel shafts Redundant sealing pack system: main seal, wiper seal, scraper seal |
SERIES | Factory Race |
TRAVEL | 9.47 |
BODY | 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel |
BODY PLATING | Hard-anodized for a durable finish |
COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
SHAFT | 7/8" hard chrome plated heat-treated alloy steel |
EXTENDED LENGTH | 25.75 |
COMPRESSED LENGTH | 16.28 |
TOP MOUNT | Stem Top |
BOTTOM MOUNT | Eyelet |
