987-02-009

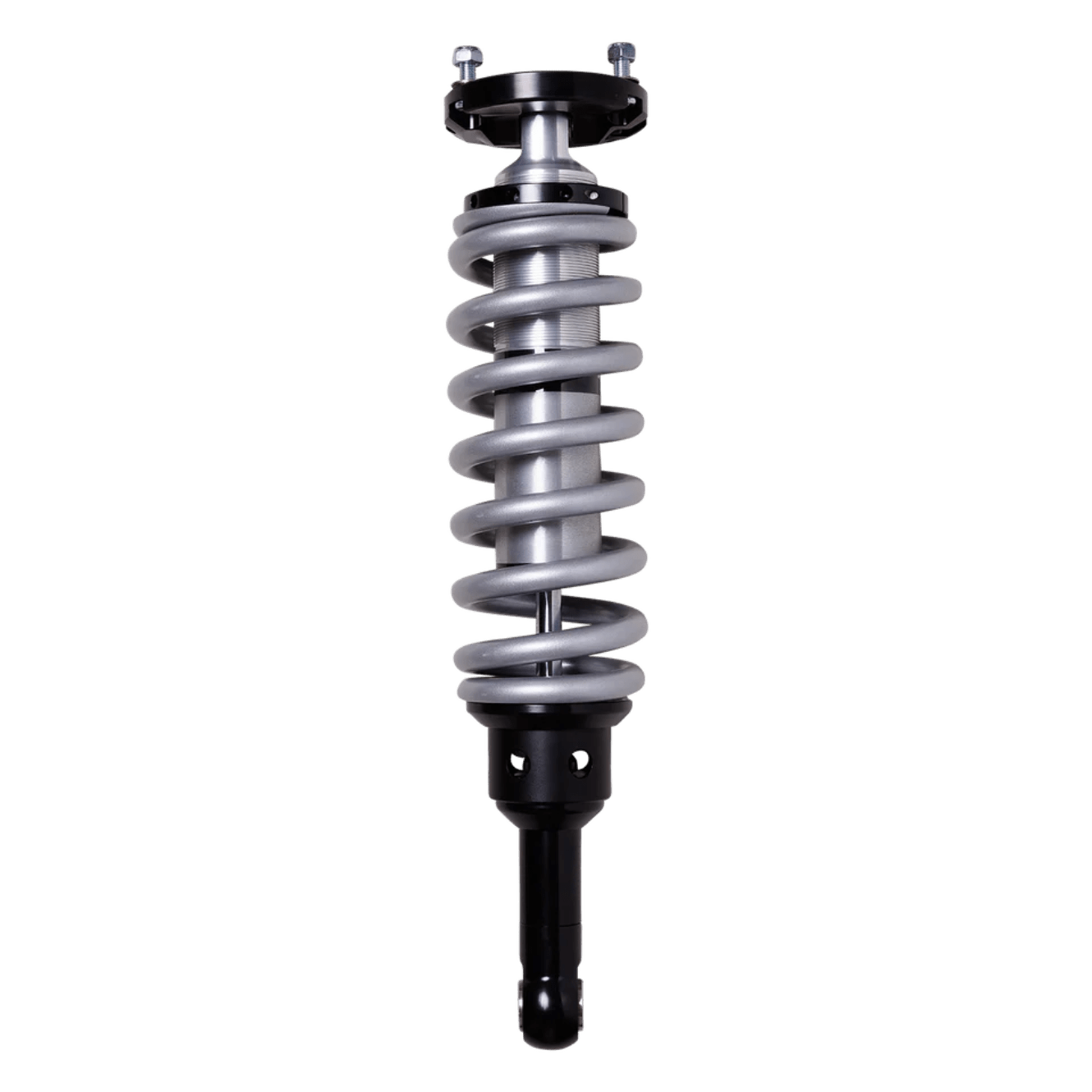

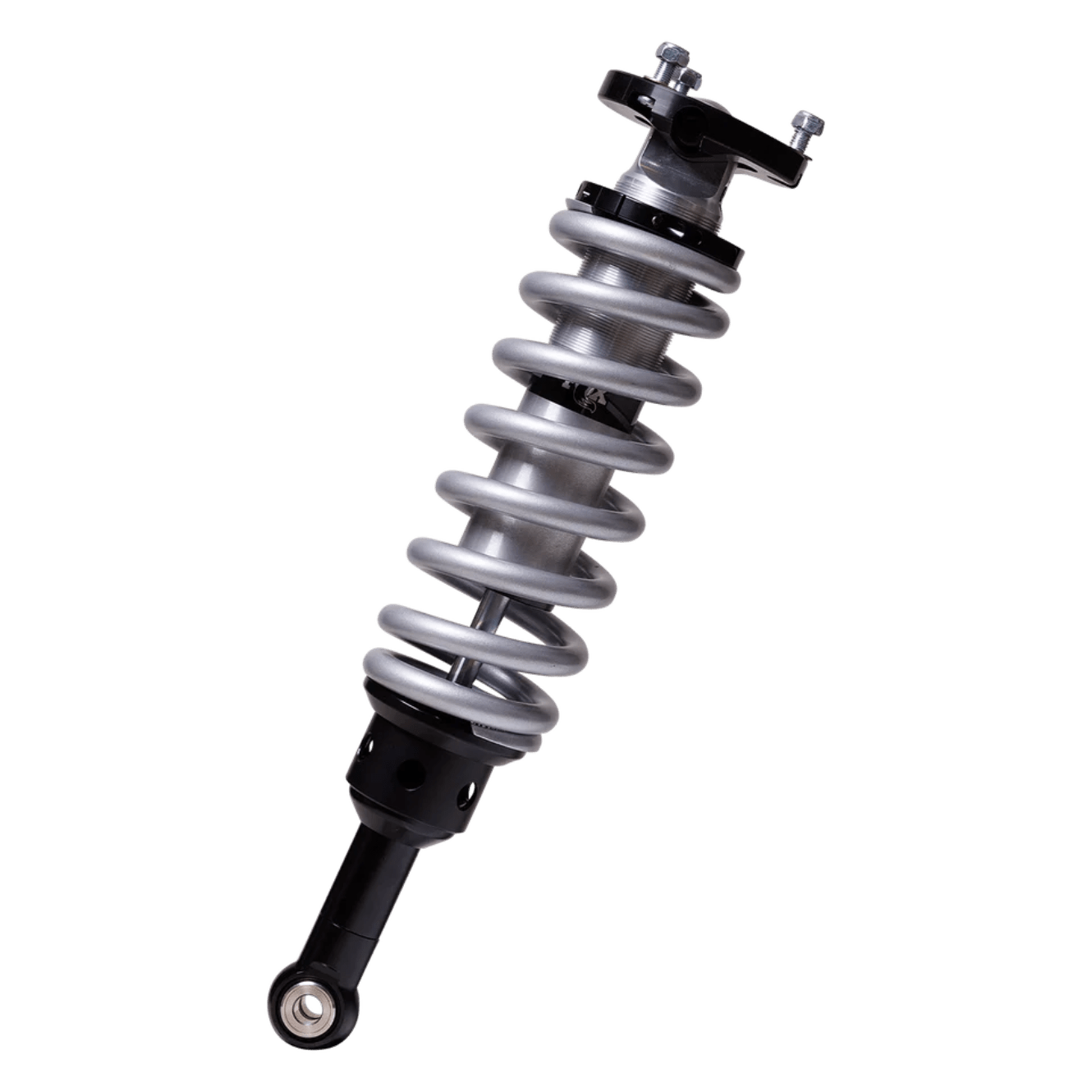

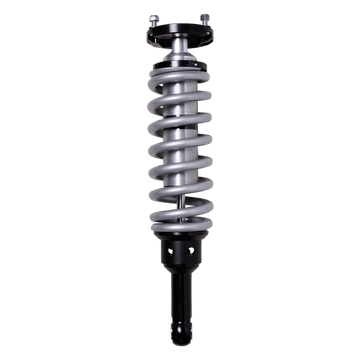

FOX Performance Series 2.5 shocks for the Toyota Hilux are a bolt-on solution with vehicle specific valving and larger pistons to improve on and off-road performance. Level your vehicle without straining ball joints or linkages to maintain OEM reliability and vehicle performance.
Monotube shocks utilise type II anodised aluminium bodies, efficiently dissipating heat and preventing corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimising damping.
Bolt-on Performance Series 2.5 shocks ride in comfort and increase damping capacity.
*Sold individually, need 2 for set.
PART NUMBER | 987-02-009 |
FEATURES |
2.5” Impact extruded 6061-T6 aluminium shock body Type II clear-anodised body plating High-flow velocity-sensitive damping 5/8” hard chrome shaft Internal floating piston (IFP) |
SERIES | Performance |
TRAVEL | 4.2 |
BODY | 2.5” Impact extruded and CNC machined 6061-T6 clear anodized aluminium one-piece body resists rust over time |
BODY PLATING | Clear-anodised for a durable finish |
COMPONENTS | Black-anodised, CNC-machined 6061-T6 billet aluminium |
SHAFT | 5/8" hard chrome plated heat-treated alloy steel |
PISTON | Race-developed high-flow piston design |
EXTENDED LENGTH | 22.18 |
COMPRESSED LENGTH | 17.98 |
TOP MOUNT | OEM |
BOTTOM MOUNT | Eyelet |
FITMENT NOTES | Requires an Upper Control Arm |
